6 Installation Note N9040-90014
Option RTS, Streaming
Assemble the WBDIF Extension board, Bracket, and Flex Circuit
1. Locate the WBDIF Extension board and the bracket in the kit. Attach the WBDIF Extension
board to the bracket with four screws from the kit. See Figure 1. Torque to 9 inch-pounds.

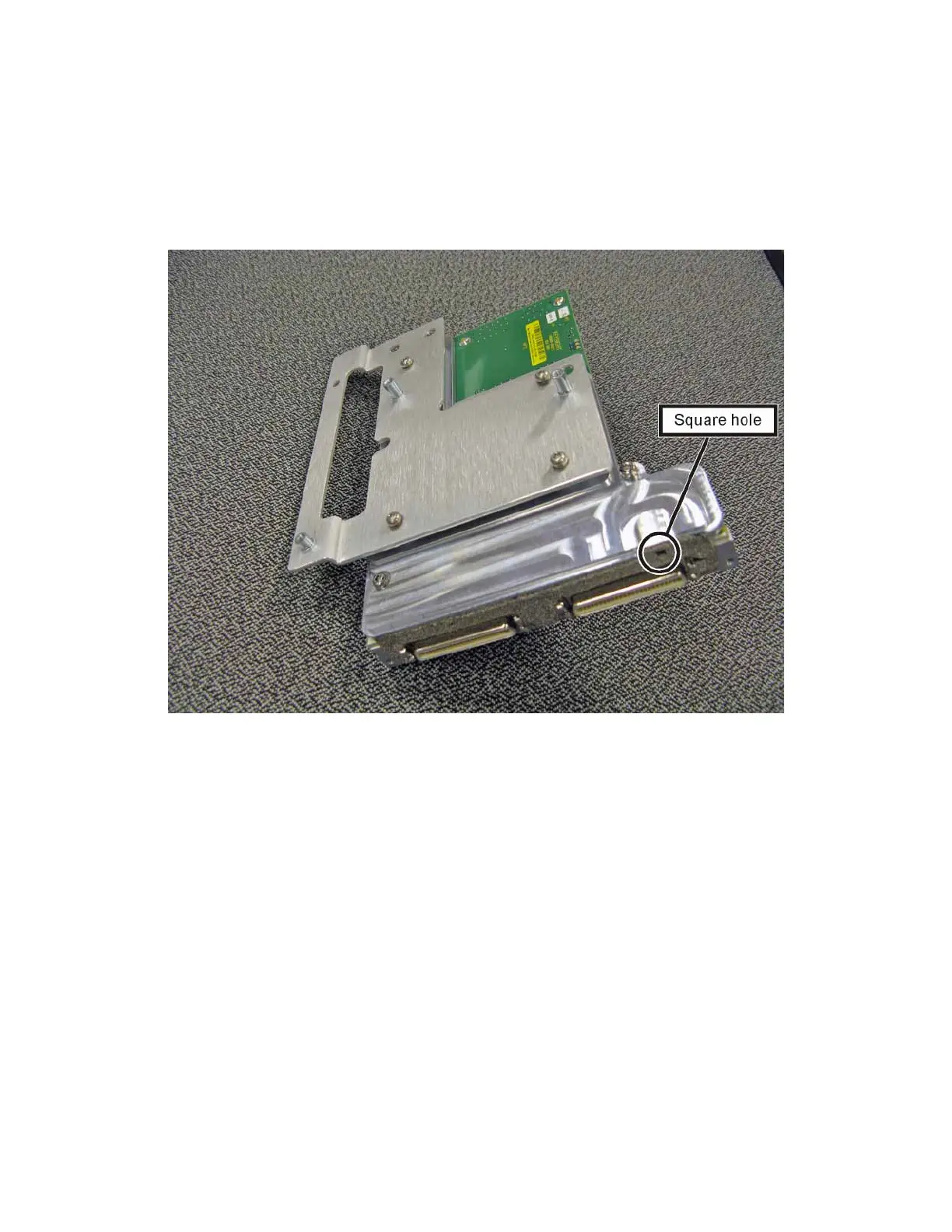

Figure 1 WBDIF Extension Board Bracket
2. Locate the gasket in the kit. Notice the gasket has a small square hole and needs to be aligned
with the square hole on the WBDIF Extension Board casting. There is an LED in the casting, and
the small square hole allows the LED to be visible from the rear panel.
The gasket is fragile. Carefully peel off the backing from the gasket and apply the sticky side of
the gasket over the two WBDIF Extension board connectors.
3. If the instrument has Option B2X, locate the N9040-60047 Flex cable in the kit. Attach the end
of the flex cable that has the alignment pins to the WBDIF Extension board J1.
4. If the instrument has Option B5X, locate both flex cables in the kit. Attach flex cable
N9040-60047 to the WBDIF Extension board J1. Attach flex cable N9040-60048 to the WBDIF
Extension board J2.
