Burst Pulse Measurements
Microwave (burst) pulse measurements are available on channel 3 Option 106
(6 GHz Microwave Input) or Option 115 (15 GHz Microwave Input) with pulse
measurement Option 150.

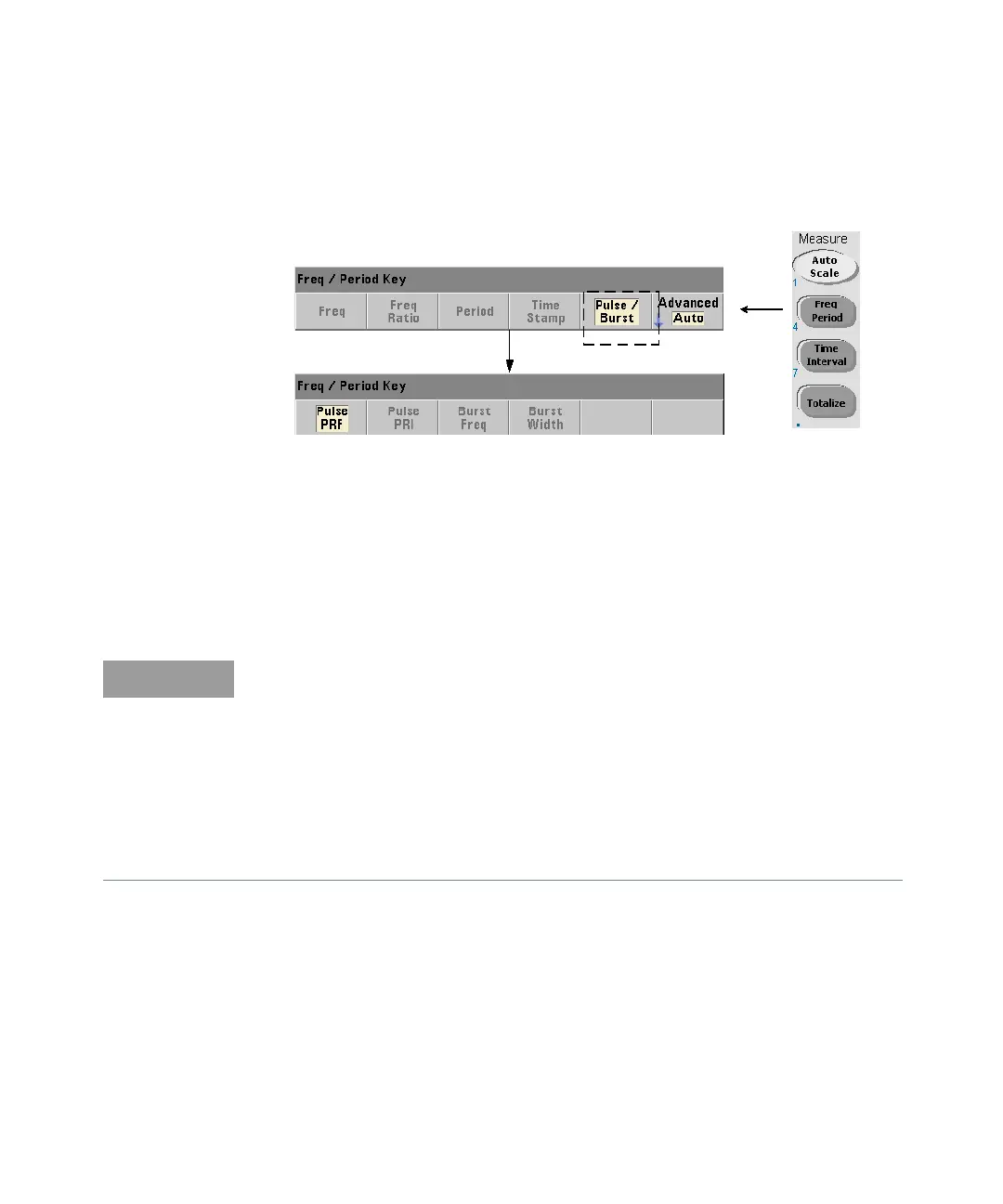

The pulse measurements covered in this section include: burst carrier frequency,
pulse repetition interval (PRI), pulse repetition frequency (PRF), positive (on)
width, and negative (off) width. Figure 3-13 identifies these measurements within
a burst signal.
NOTE
The SCPI commands listed in these examples are provided as an introduction to
how measurements involving microwave pulses are made. Commands may be
included even though they specify default values - but which should be
considered when modifying the examples for actual use. Refer to the
‘Programmer’s Reference’ on the Keysight 53210A/53220A/53230A Product
Reference CD for additional information.
For further information on microwave measurements, see Application Note
200-1 “Fundamentals of Microwave Frequency Counters” also included on the
CD.
