Keysight CX3322A Quick Operation Guide

Keysight Technologies
CX3300 Current Waveform Analyzer
Quick Operation Guide

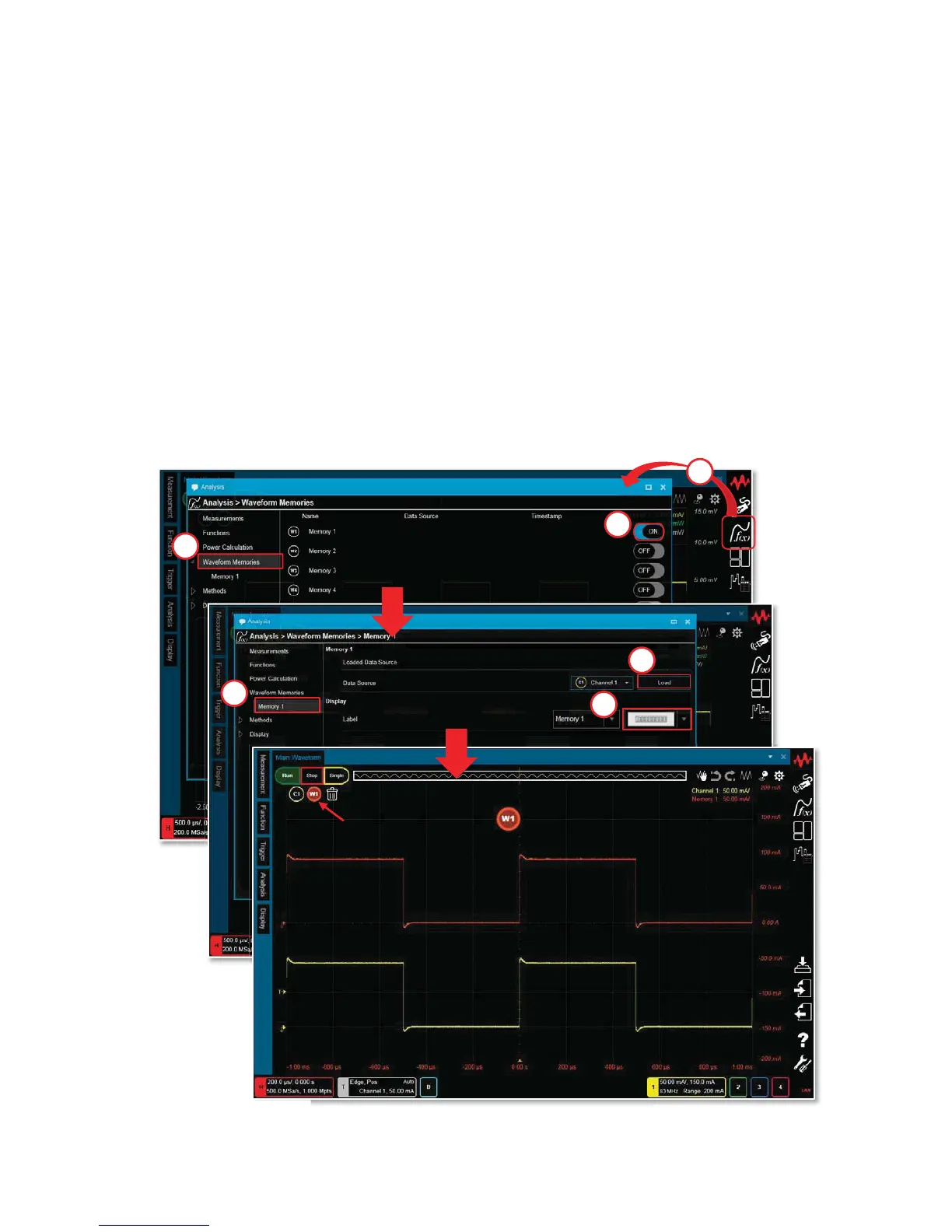

How to use the waveform memory
1. Click on the “Analysis” icon to open the “Analysis” dialog box.
2. Select “Waveform Memories”.
3. Select “ON”.
4. Select “Memory X” ( X is a number. X=1 in this case. )
5. Press [Load]. The waveform is loaded from Memory X.
6. Change the color, if necessary.
1
2
3
4
5
6
Analysis
Memory 1
Channel1
Icon for Memory 1 is shown.
25
