CX3300 Current Waveform Analyzer
Quick Operation Guide
How to apply the post-filter
1. How to apply the post-filter

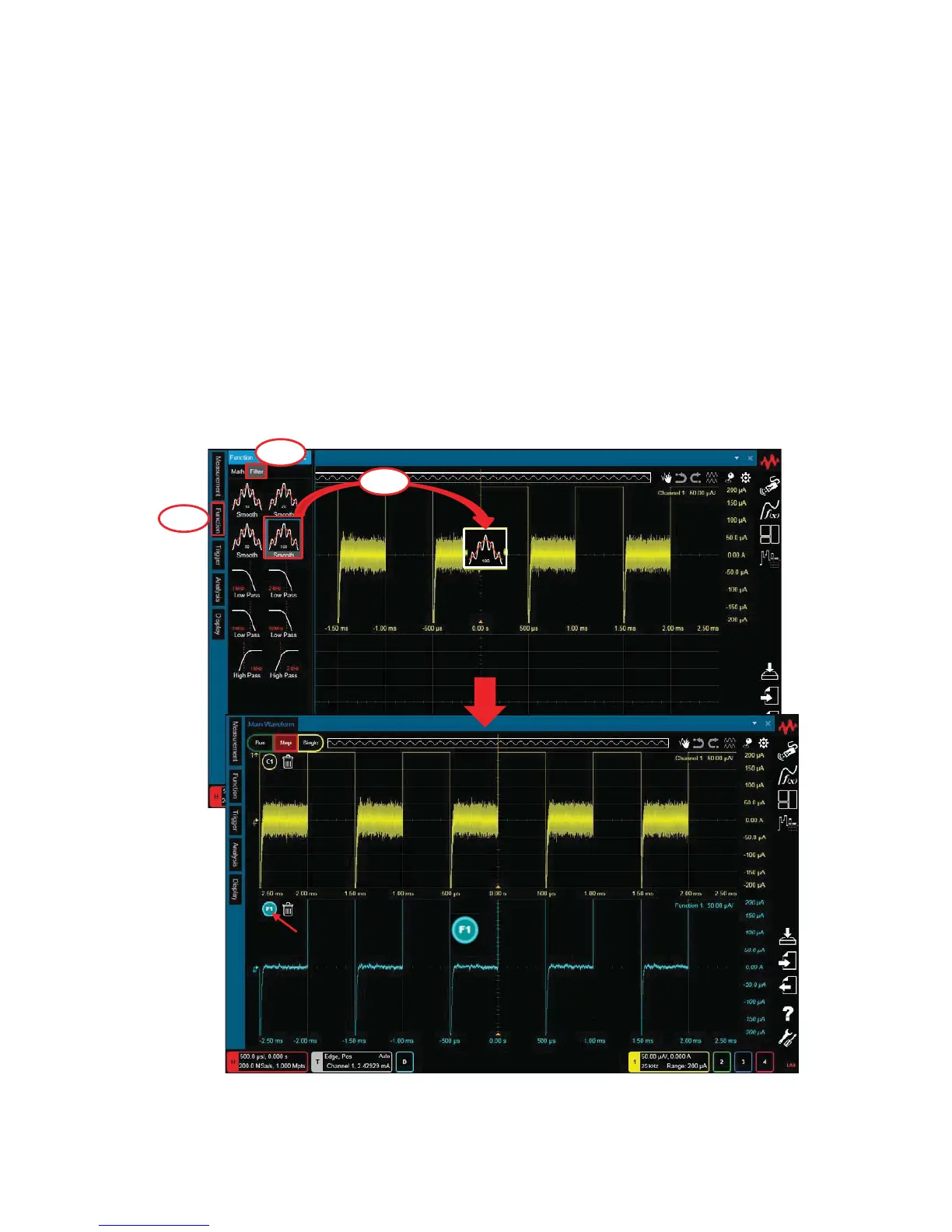

1-1. Click the “Function” icon on the Tool Palette.
1-2. Select “Filter” on the Function tool palette.
1-3. Drag and drop the “Smooth 100pts” icon on the Function tool palette
onto the area of interest on the waveform.
1-1
1-2
Icon for Function 1 is shown.
Smoothing Waveform
Original Waveform
1-3
