Keysight E4990A - Page 46

Keysight Technologies
E4990A Disassembly Procedure
Rev.
3

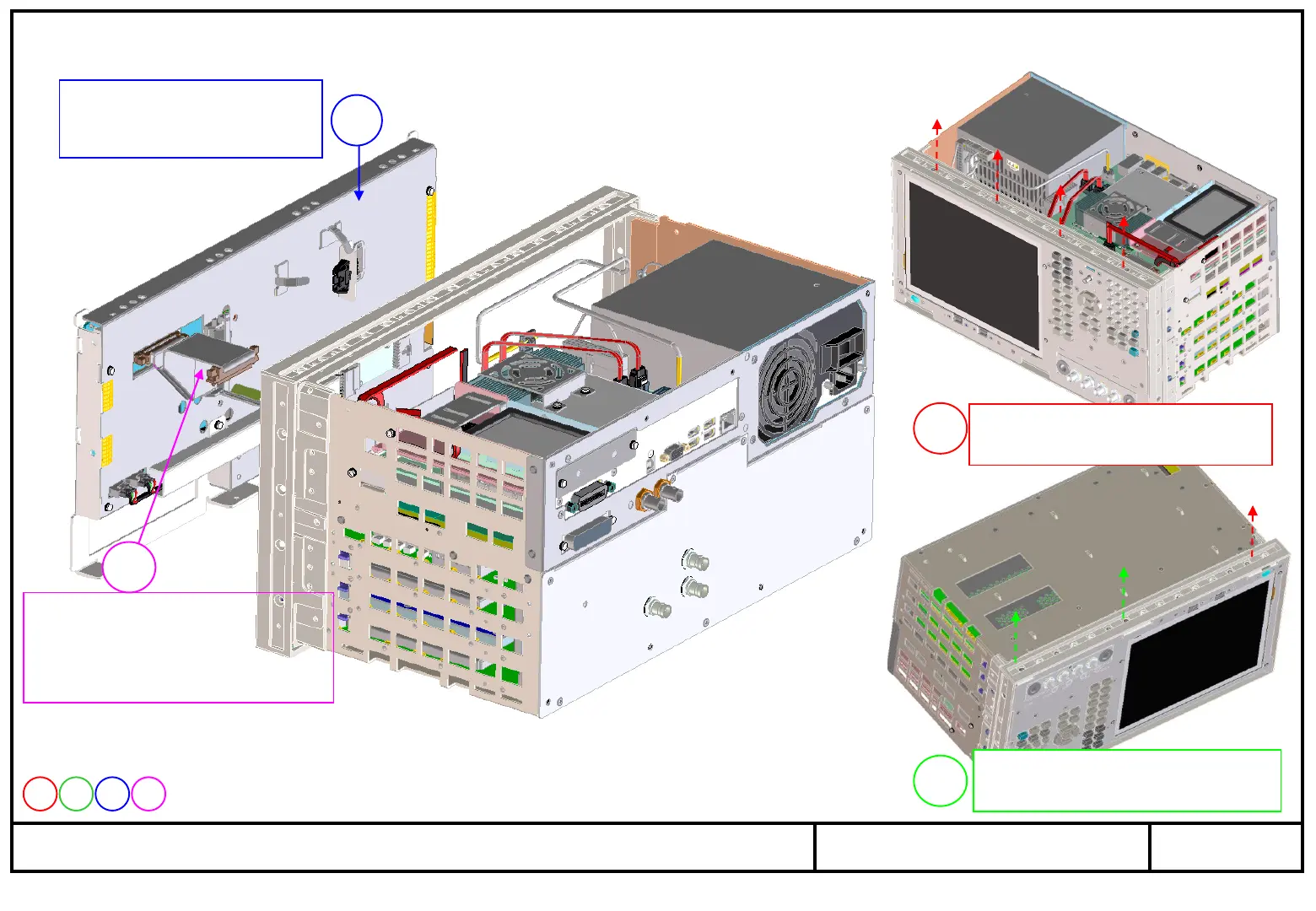

Remove Front Panel
sub-assembly
4
Disconnect flat cable of
Front Panel Ass’y from
CPU Module
SOURCE MODULE - SOURCE MODULE DIS-ASSEMBLY (2) f70
A
1 2 3
Remove 0515-1382 (5ea)
T15 M3.5L6 Flat
1
2
Remove 0515-2044 (2ea)
T20 M4L10 Flat
4
