E4990A Disassembly Procedure
Rev.
ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (2)
A
5

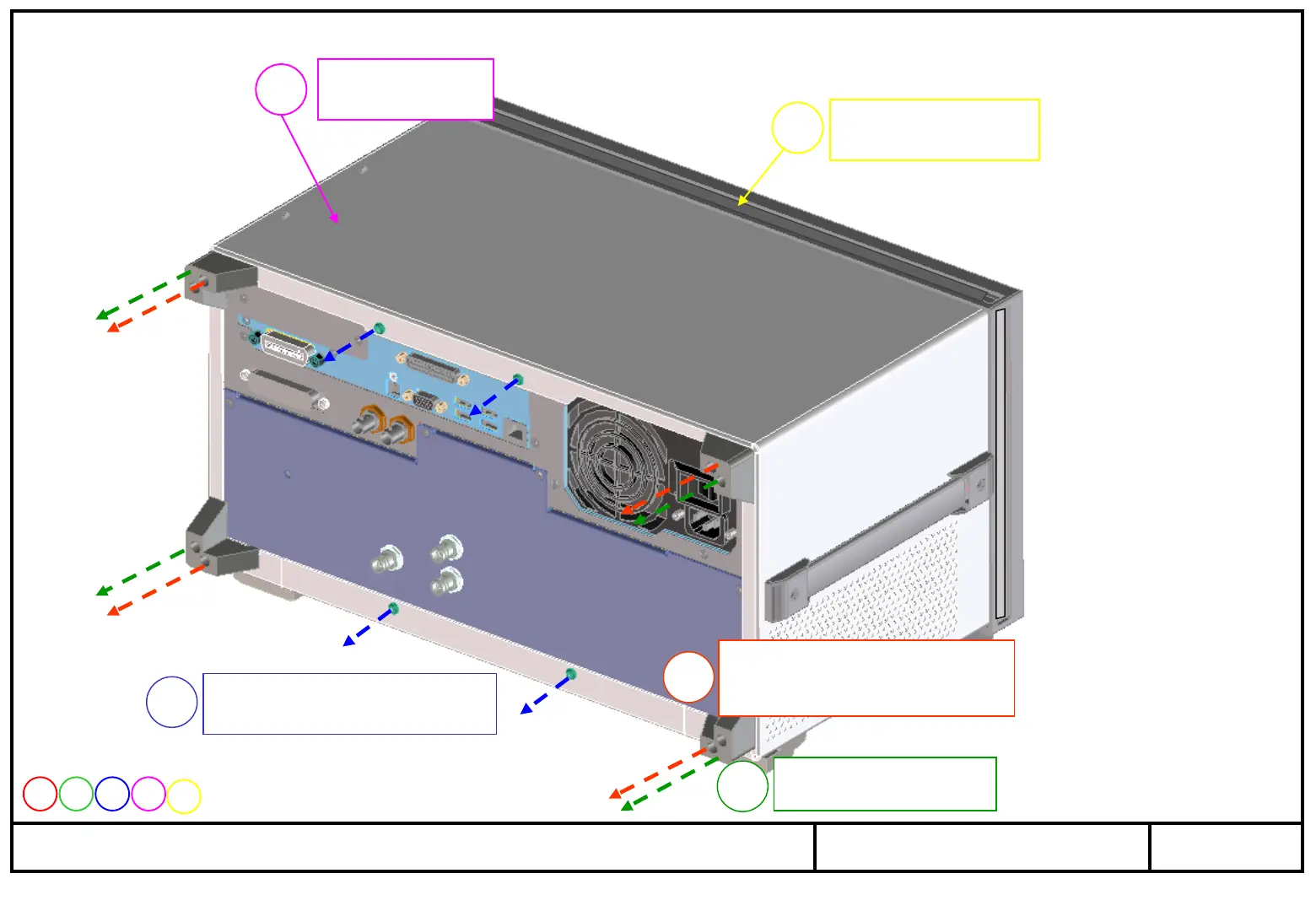

Remove trim strip
1 2 3 4
1
2
Remove 0515-1402 (4ea)
T15 M3.5L8 PAN
Remove foot (4ea)
3
Remove 0515-1402 (4ea)
T15 M3.5L8 PAN
5
4 Remove cover
