Keysight Technologies
E4990A Disassembly Procedure
Rev.

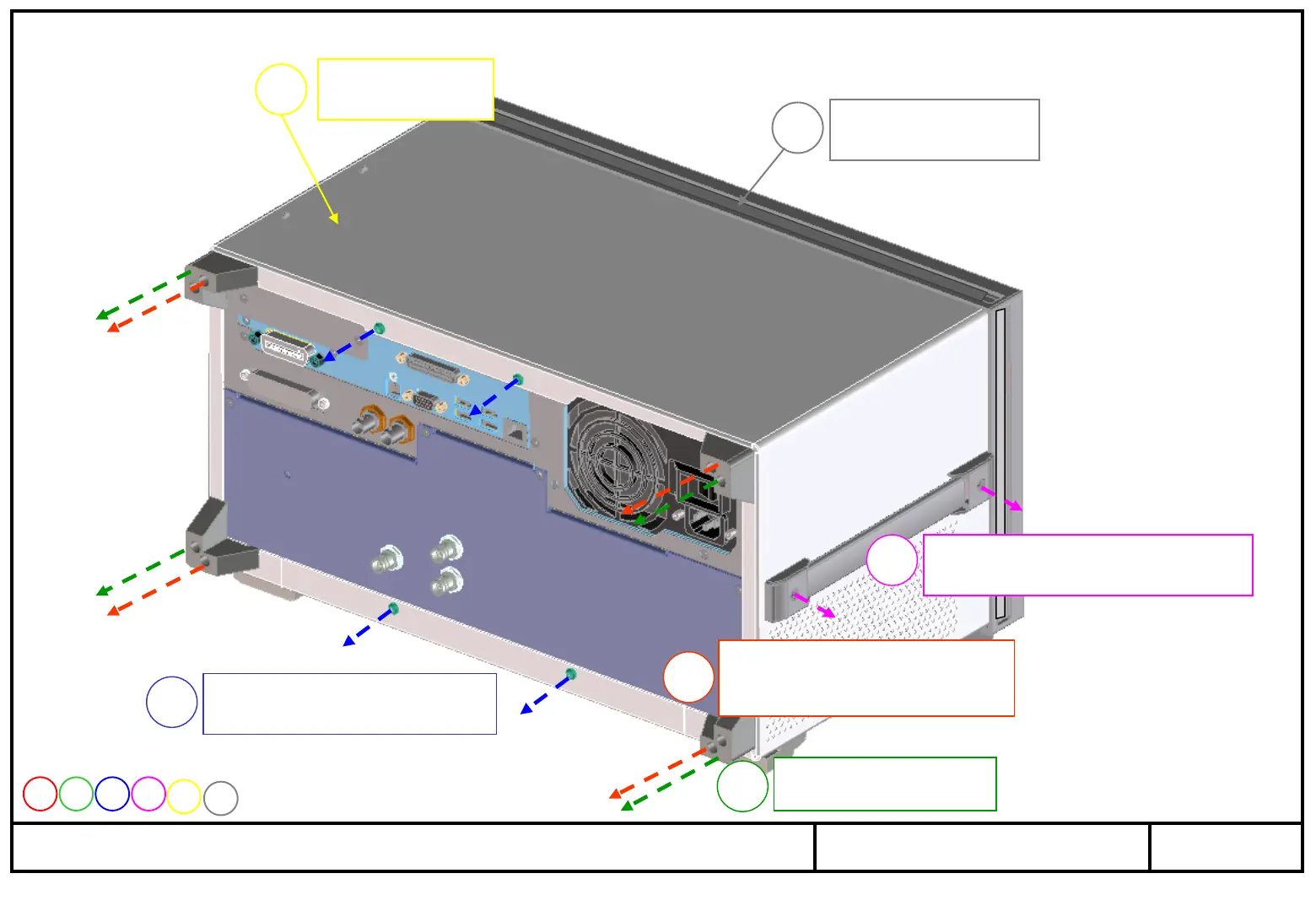

LCD - LCD DIS-ASSEMBLY (1)
A
6
Remove trim strip
1 2 3 4
1
2
4
Remove
HANDLE ASSEMBLY T20
Remove 0515-1402 (4ea)
T15 M3.5L8 PAN
Remove foot (4ea)
3
Remove 0515-1402 (4ea)
T15 M3.5L8 PAN
5
5 Remove cover
6
