Keysight E4990A - Page 70

Keysight Technologies
E4990A Disassembly Procedure
Rev.

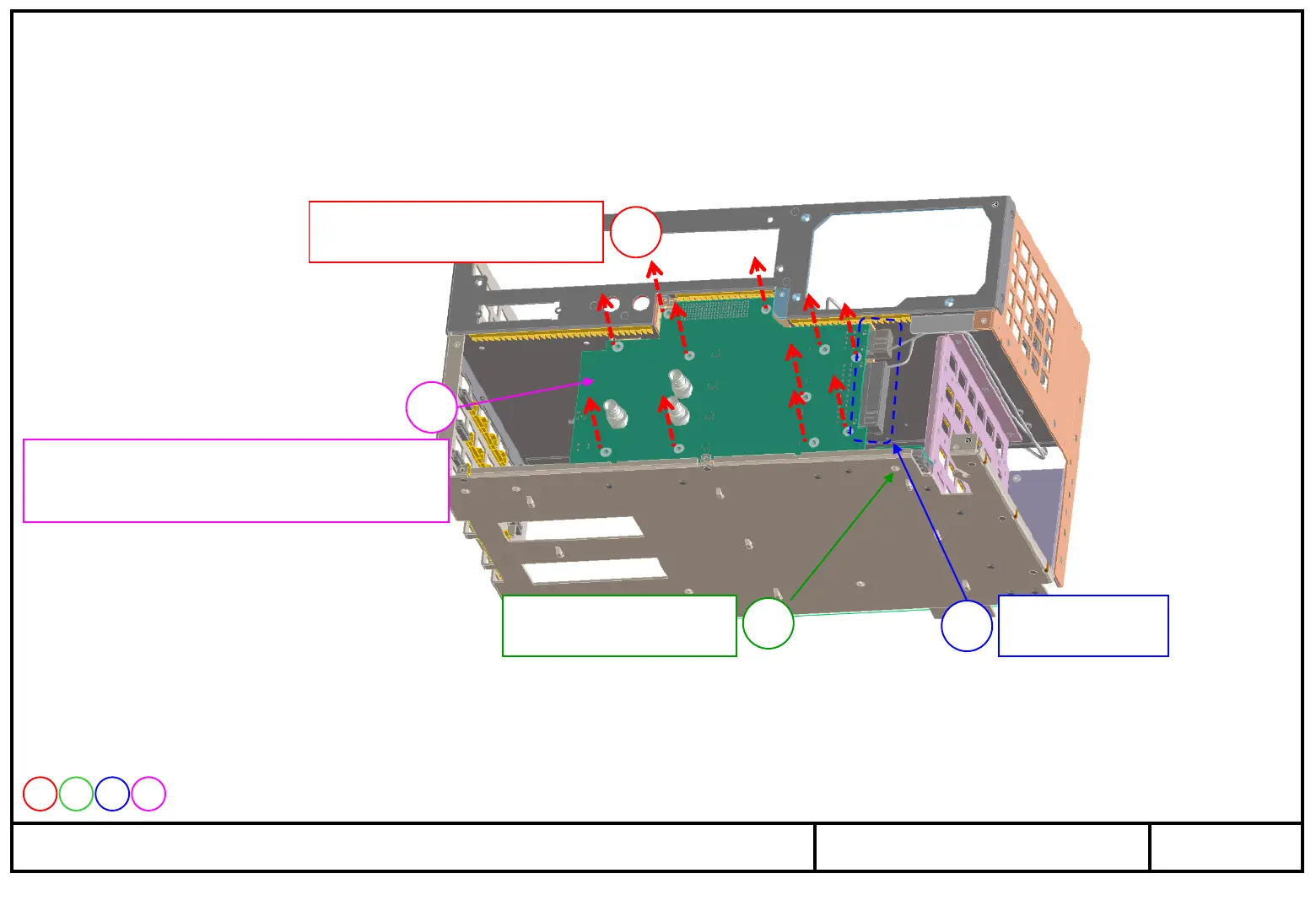

ANALOG MOTHER BOARD - ANALOG MOTHER BOARD DIS-ASSEMBLY (11)
A
3
2
1
1 2 3
Remove 0515-1946
T10 M3L6 FLAT
Remove 0515-0430 (11ea)
T10 M3L6 PAN
Disconnect
4
Remove
Analog Mother Board (E5061-66610)
4
