Installation Note N9030-90045 23
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
1. Refer to Figure 17. Remove the eight screws (32) and the inverter top shield (2).

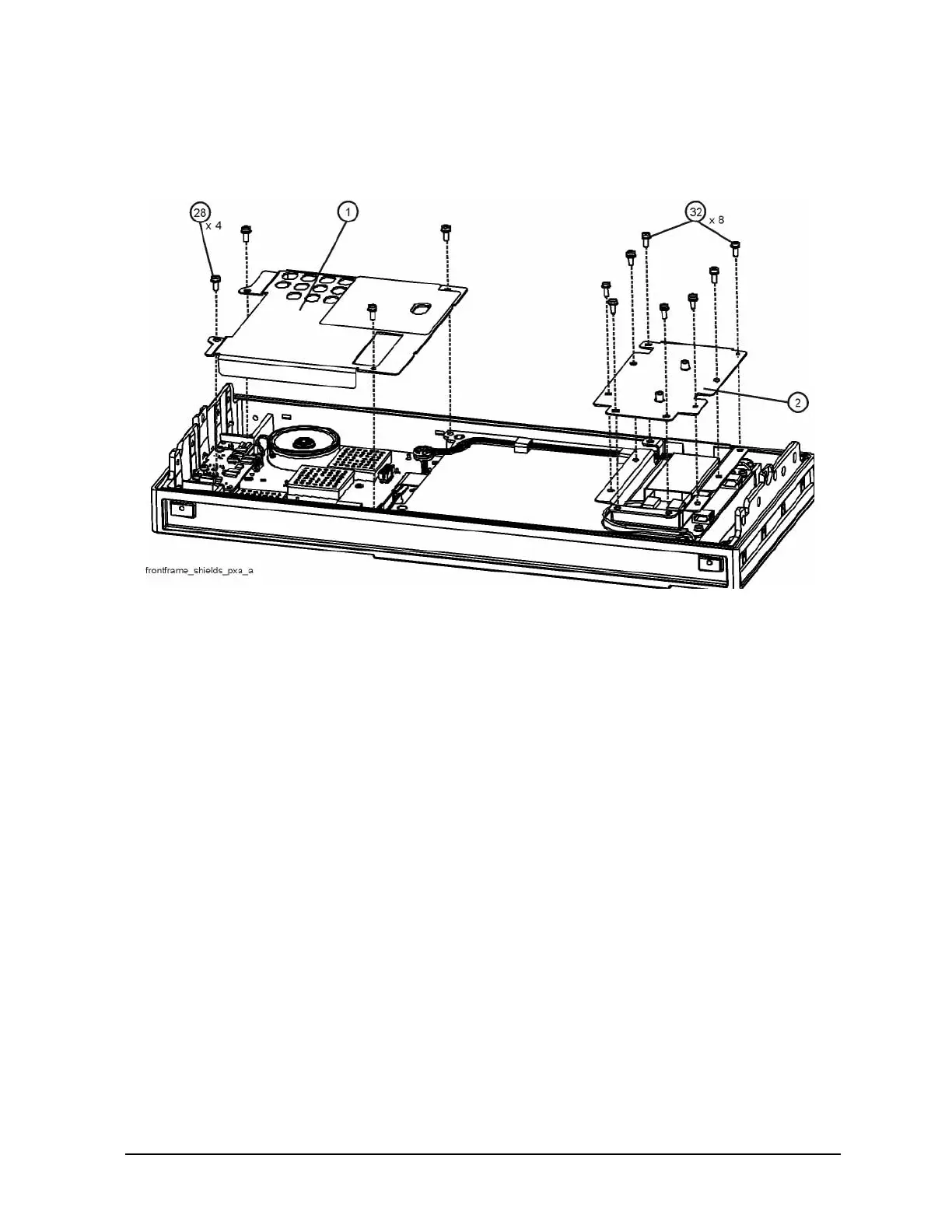

Figure 17 Front Frame Assembly Shields
