24 Installation Note N9030-90045
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
2. Refer to Figure 18. Disconnect the wires (1) from the Inverter board (3).

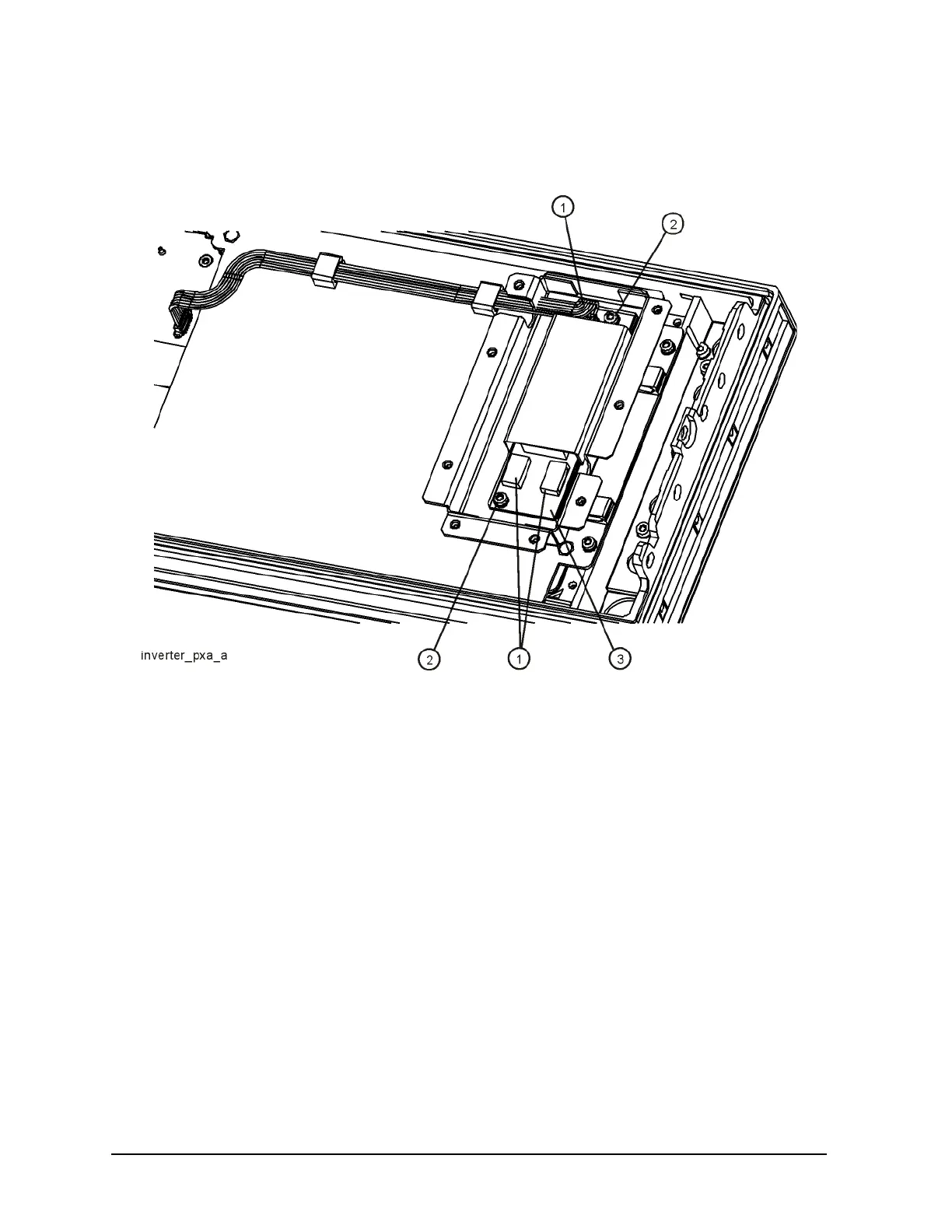

Figure 18 Inverter Board Removal
3. Remove the two screws (2) securing the Inverter board (3). The Inverter board and inverter
bottom shield can now be removed.
4. Refer to Figure 17. Remove the front panel shield by removing the four screws (28).
5. Disconnect the cable A1W2 (25) from the LCD Inverter board (13) and unclip the cable from
the cable clamps.
