Installation Note N9030-90045 25
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
6. Refer to Figure 19. Disconnect the flex circuit A1W1 (1) from the front panel interface board
(4) .

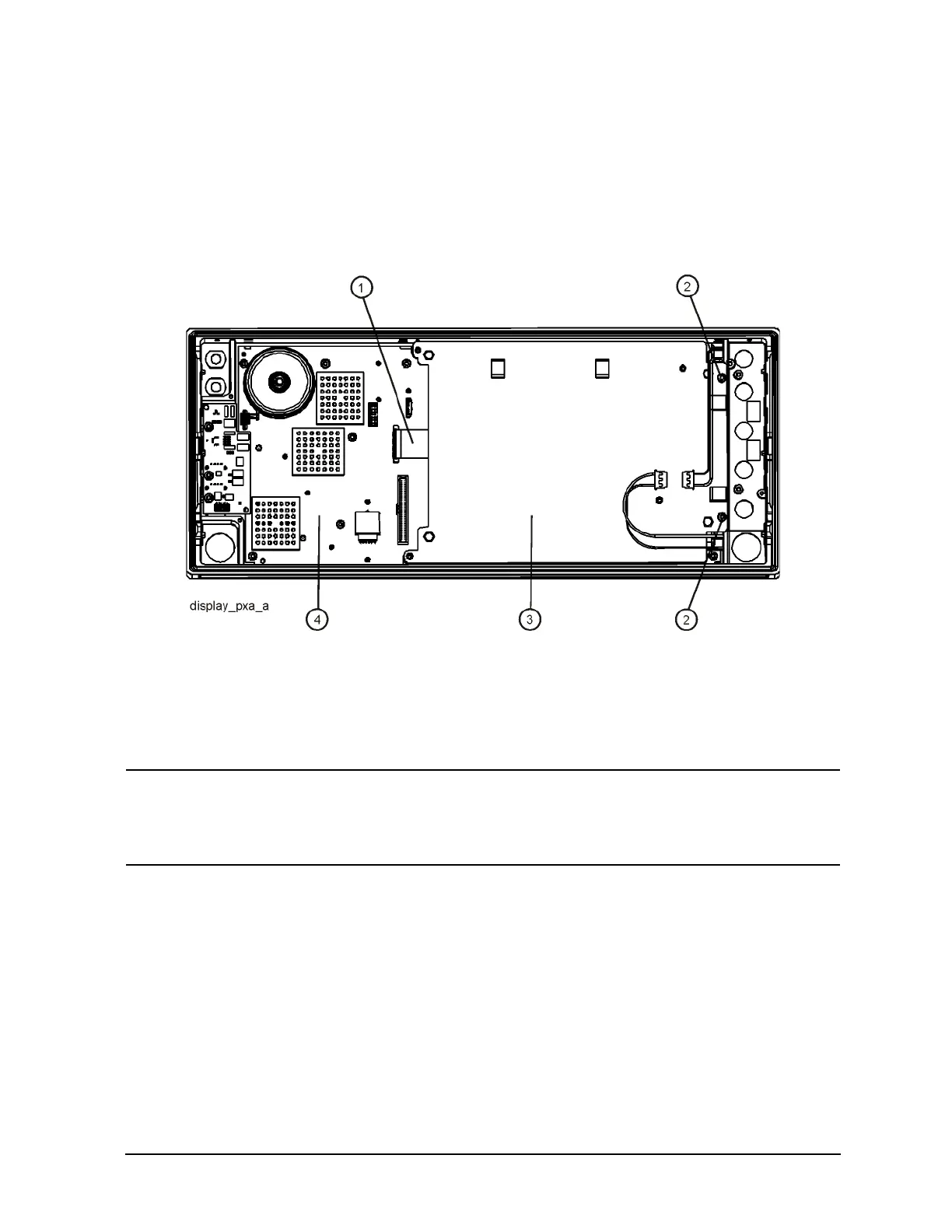

Figure 19 Display Removal
7. Remove the two screws (2) securing the display bracket (3) to the Front Frame Assembly. The
display can now be removed from the Front Frame Assembly.
CAUTION Once the display assembly has been removed from the Front Frame Assembly, the
glass filter is no longer secured. DO NOT tip the assembly in such a manner that
would cause it to fall out of place, as this may cause injury and/or damage to the
glass.
