28 Installation Note N9030-90045
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
4. Refer to Figure 22. Line up the holes and carefully attach the N9020-80013 overlay to the LED
board.
5. Install the LED board with overlay attached (1) into the front frame.
6. Secure the LED board with 0515-1227 screws (2) in two places. Torque to 9 in-lbs.

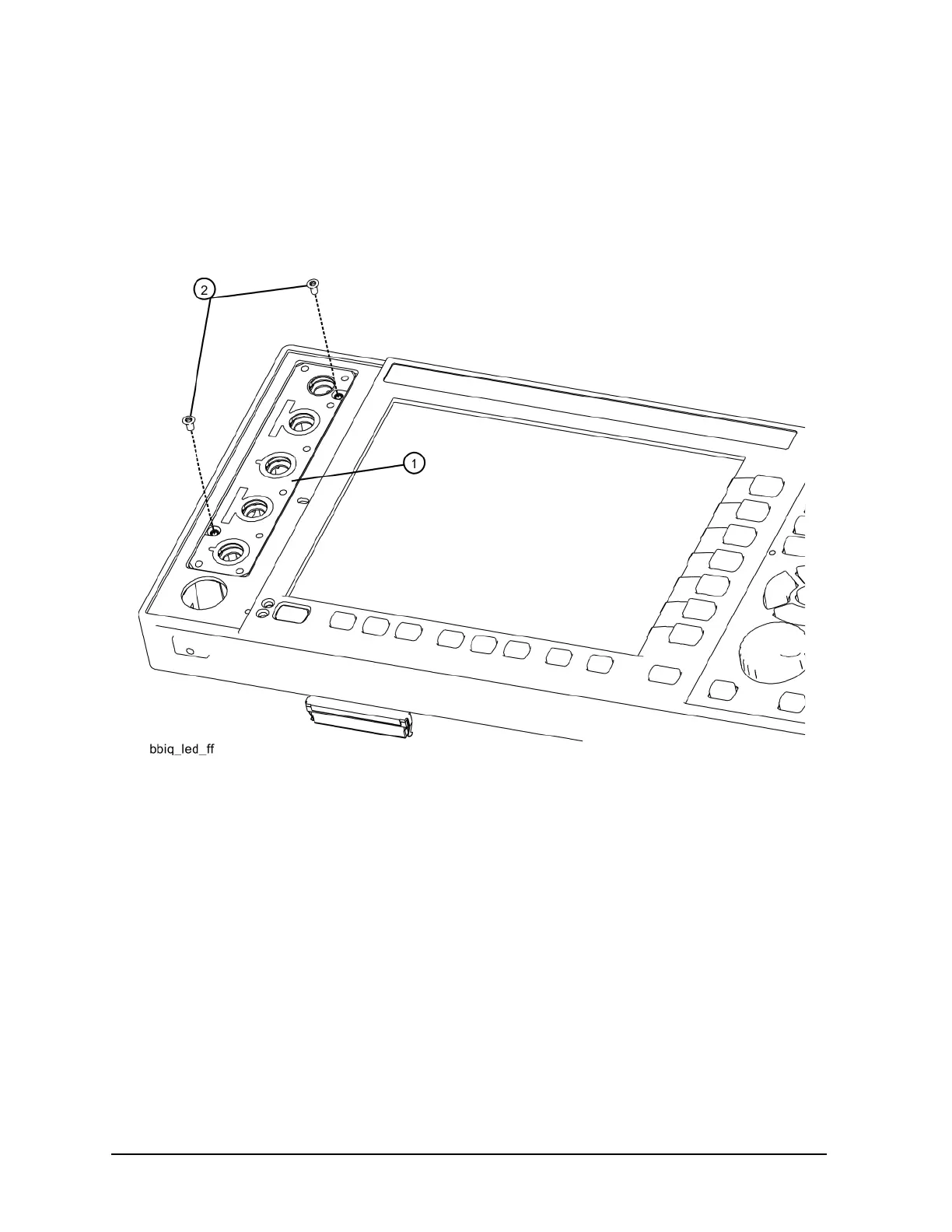

Figure 22 LED Board Installation
