Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
7. Refer to Figure 23. Line up and carefully attach the top overlay N9020-80014 over the lower
overlay.
8. Press firmly down over the entire surface area of the top overlay.

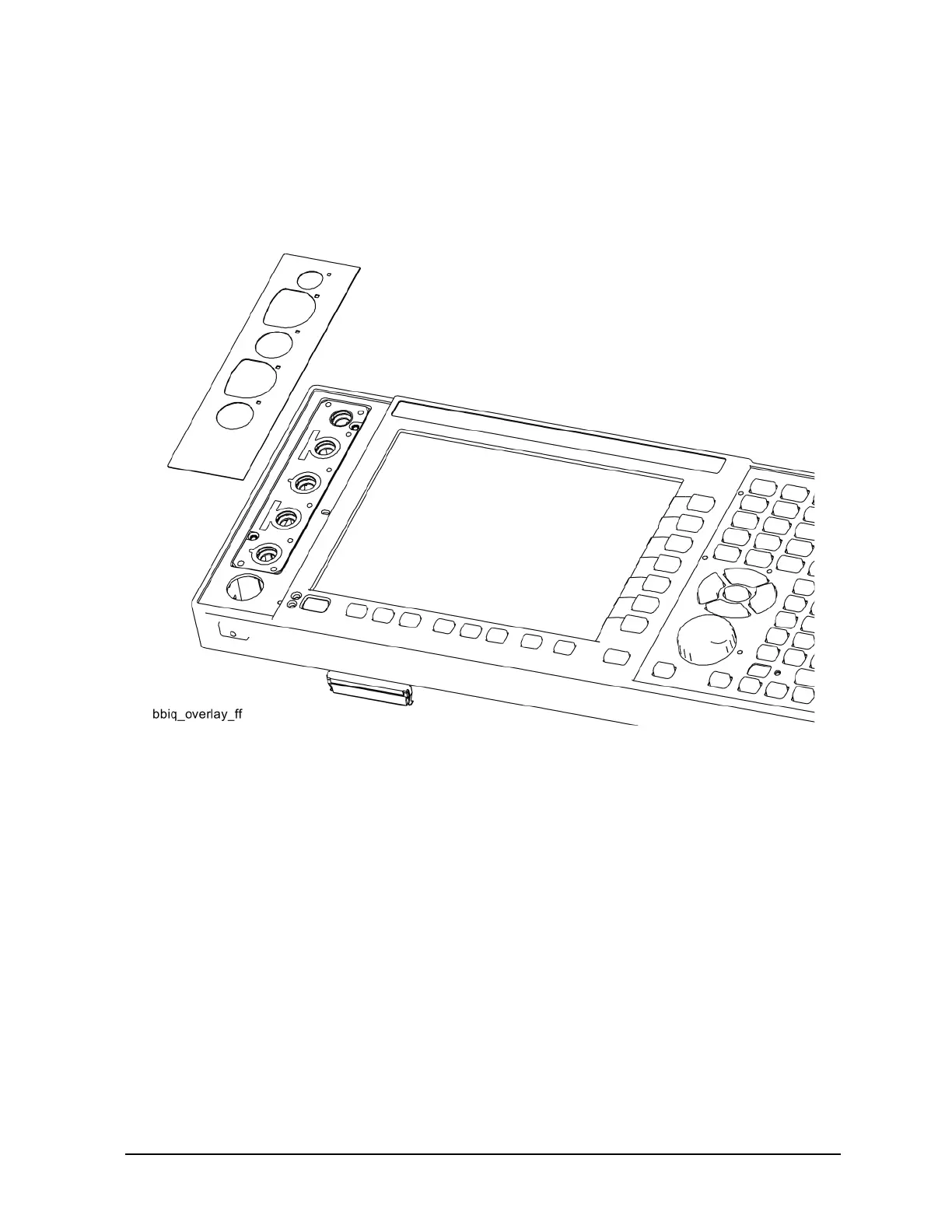

Figure 23 Overlay Alignment
