30 Installation Note N9030-90045
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
9. Refer to Figure 24. Install the BBIQ Interface Board, N9020-65094 into the front frame passing
the BNC connectors through the holes.
10.Secure the BBIQ Interface Board with two 0515-0372 screws (2). Torque to 9 in-lbs.

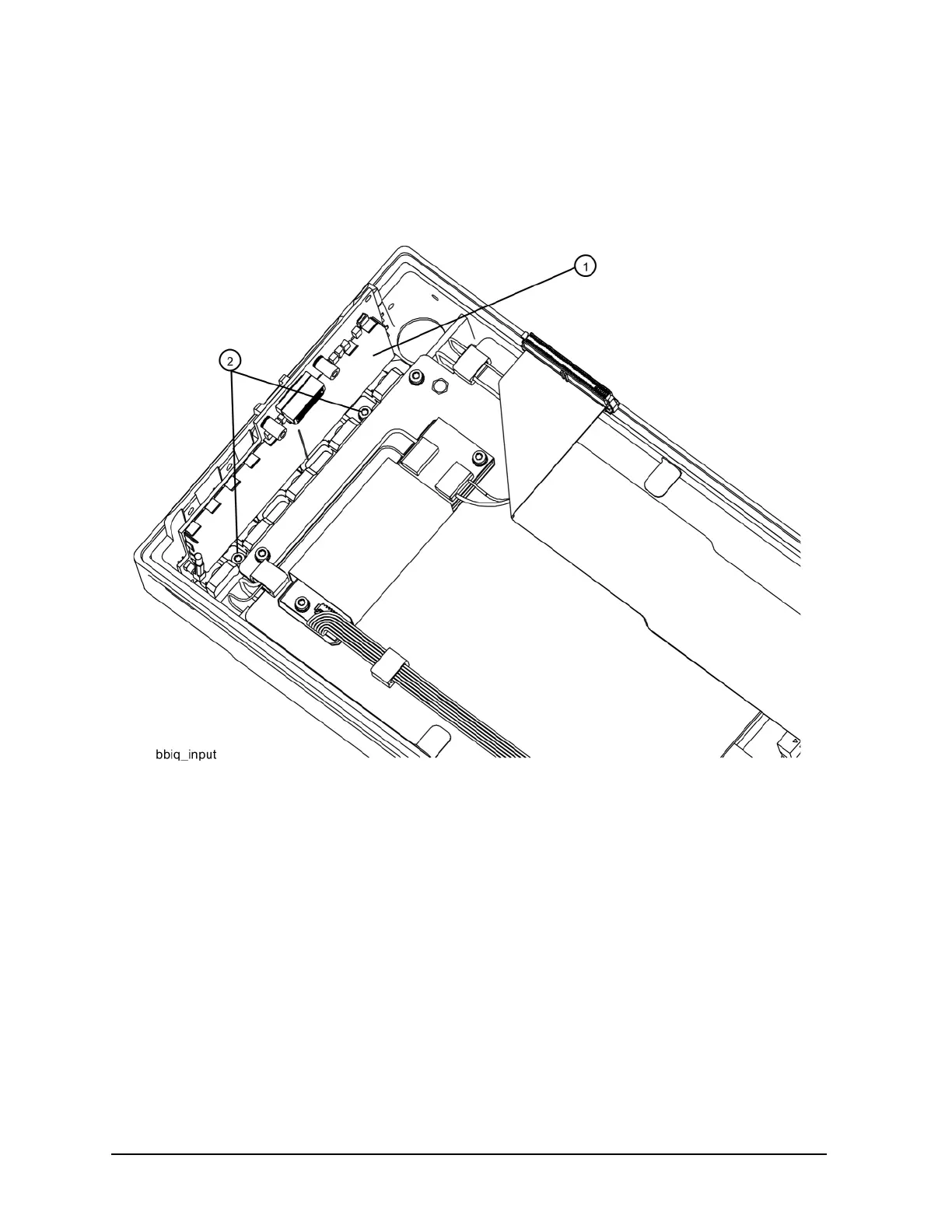

Figure 24 BBIQ Interface Board Installation
