Installation Note N9030-90045 31
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
11.Refer to Figure 25. Secure BBIQ Interface Board to the side of the front frame with a single
0515-1035 screw (1 ) . Torque to 9 in-lbs.

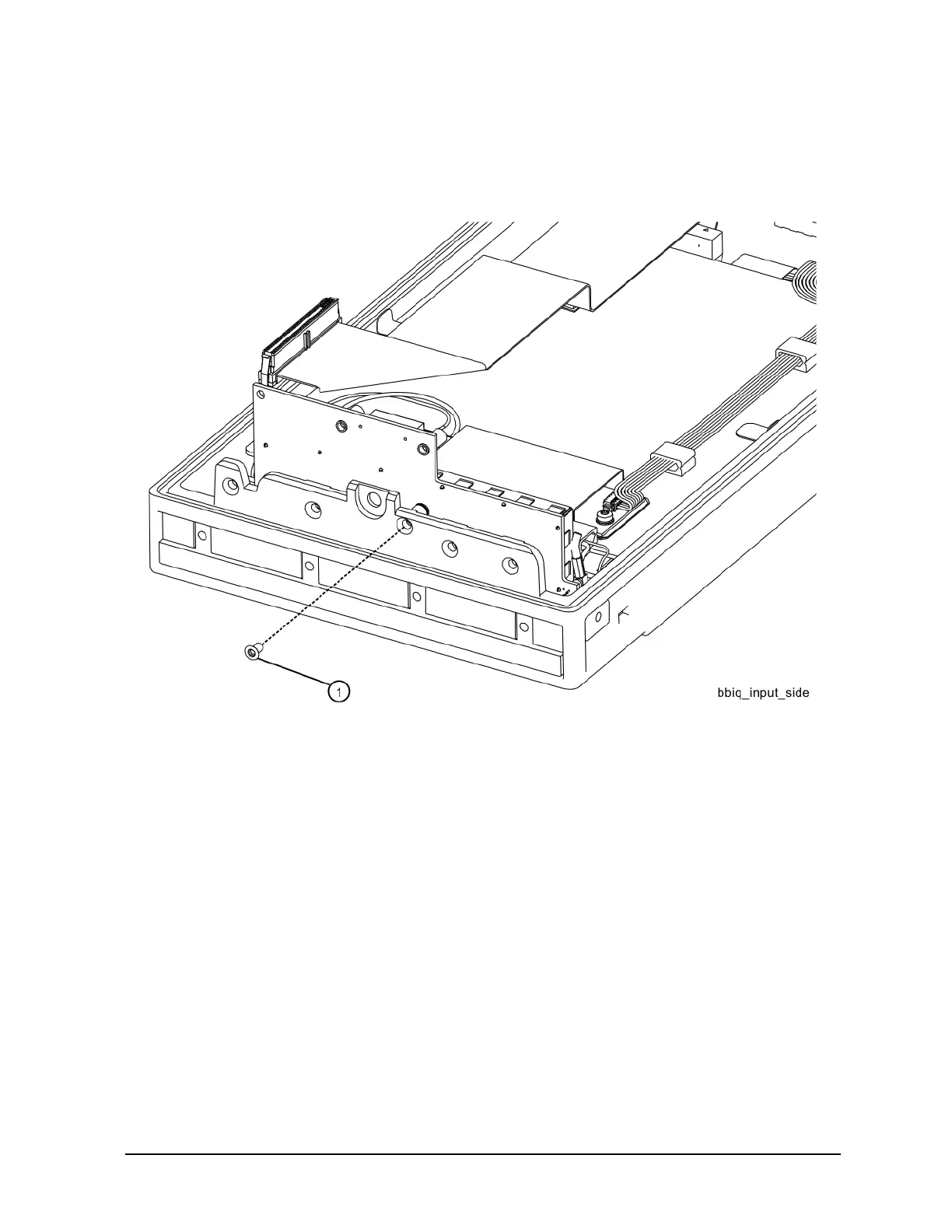

Figure 25 BBIQ Interface Board Side Screw Installation
