32 Installation Note N9030-90045
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
12.Refer to Figure 26 and Figure 27.
Figure 26 shows an LCD front frame. If you have an LCD front frame perform steps 13 to 17, then
continue with step 23.
Figure 27 shows an LED front frame. If you have an LED front frame skip steps 13 to 17 and
continue with step 18.

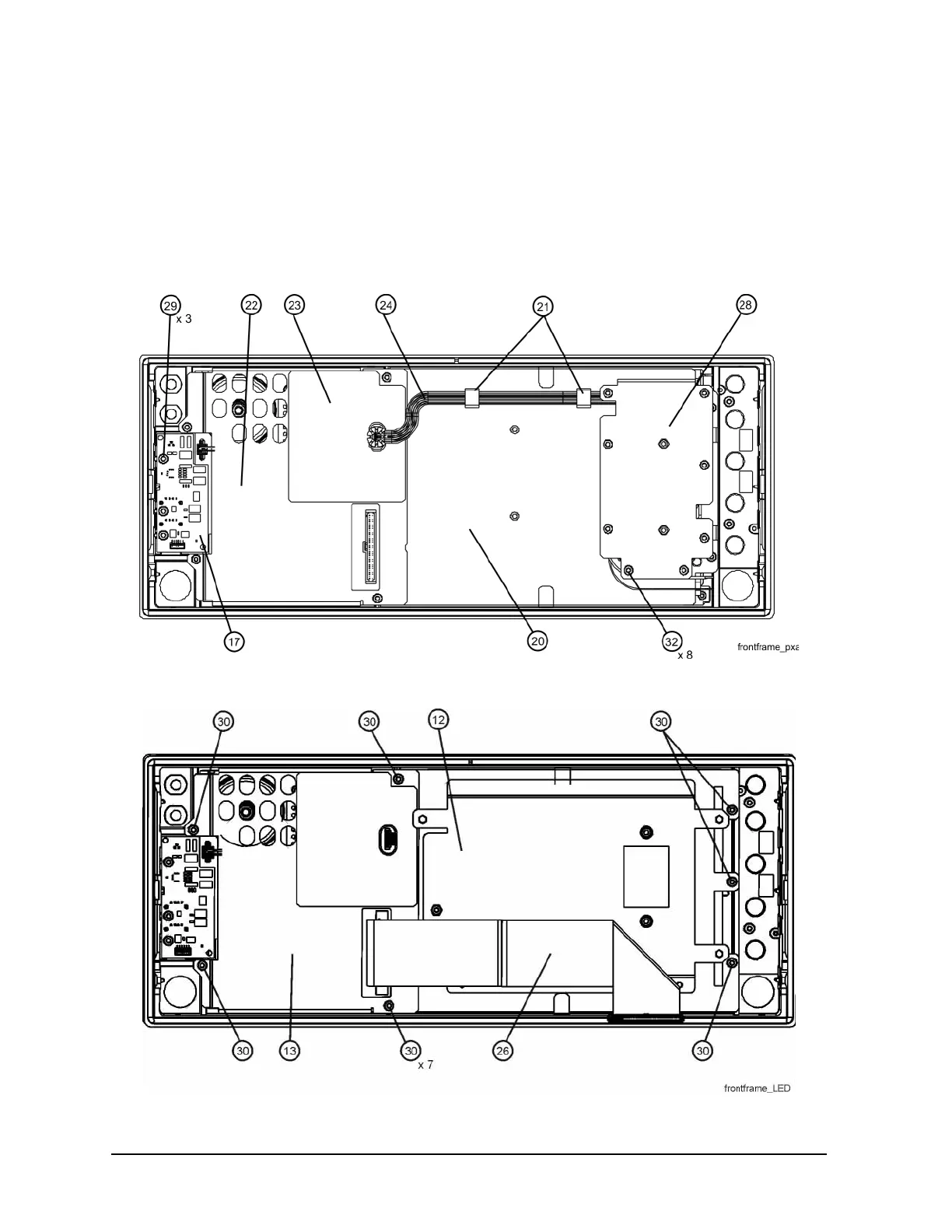

Figure 26 Front Frame Parts Locator - LCD
Figure 27 Front Frame Parts Locator - LED
