22 Installation Note N9030-90058

Option EXM, External Mixing Upgrade Kit

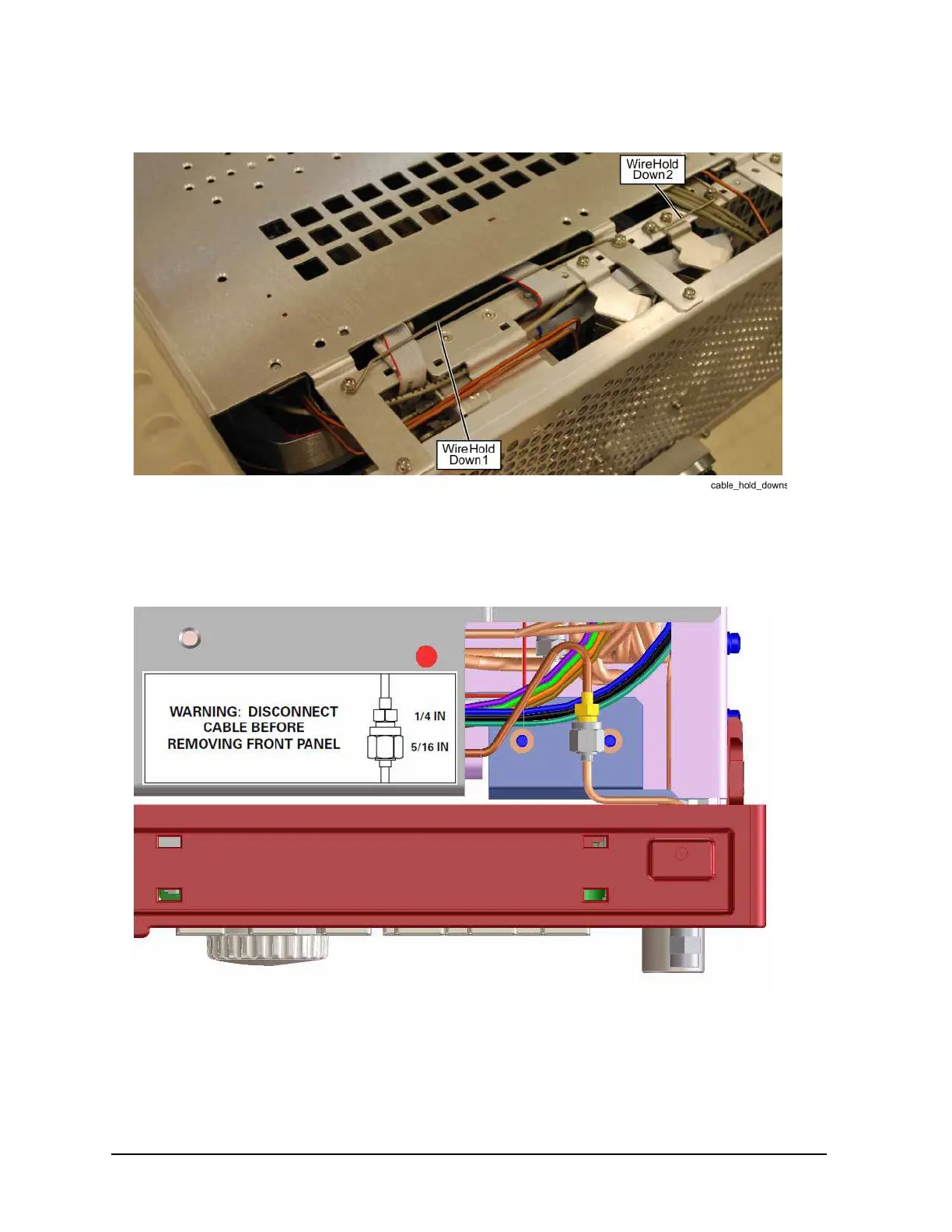

Figure 17 Wire Hold Downs

4. In the upgrade kit, locate the Warning Label, N9030-80018.

5. Refer to Figure 18. Attach the Warning Label to the top brace as shown.

Figure 18 Add Warning Label to Top Brace
