Keysight U8001A - Measurement Techniques; Figure 5-2 Test Setups

5 Service Guide
60 Keysight U8001A/U8002A User’s and Service Guide
Measurement techniques
Test setup
Most tests are performed at the front terminals as shown below. Measure the DC
voltage directly at the positive (+) and negative (–) terminals on the front panel.

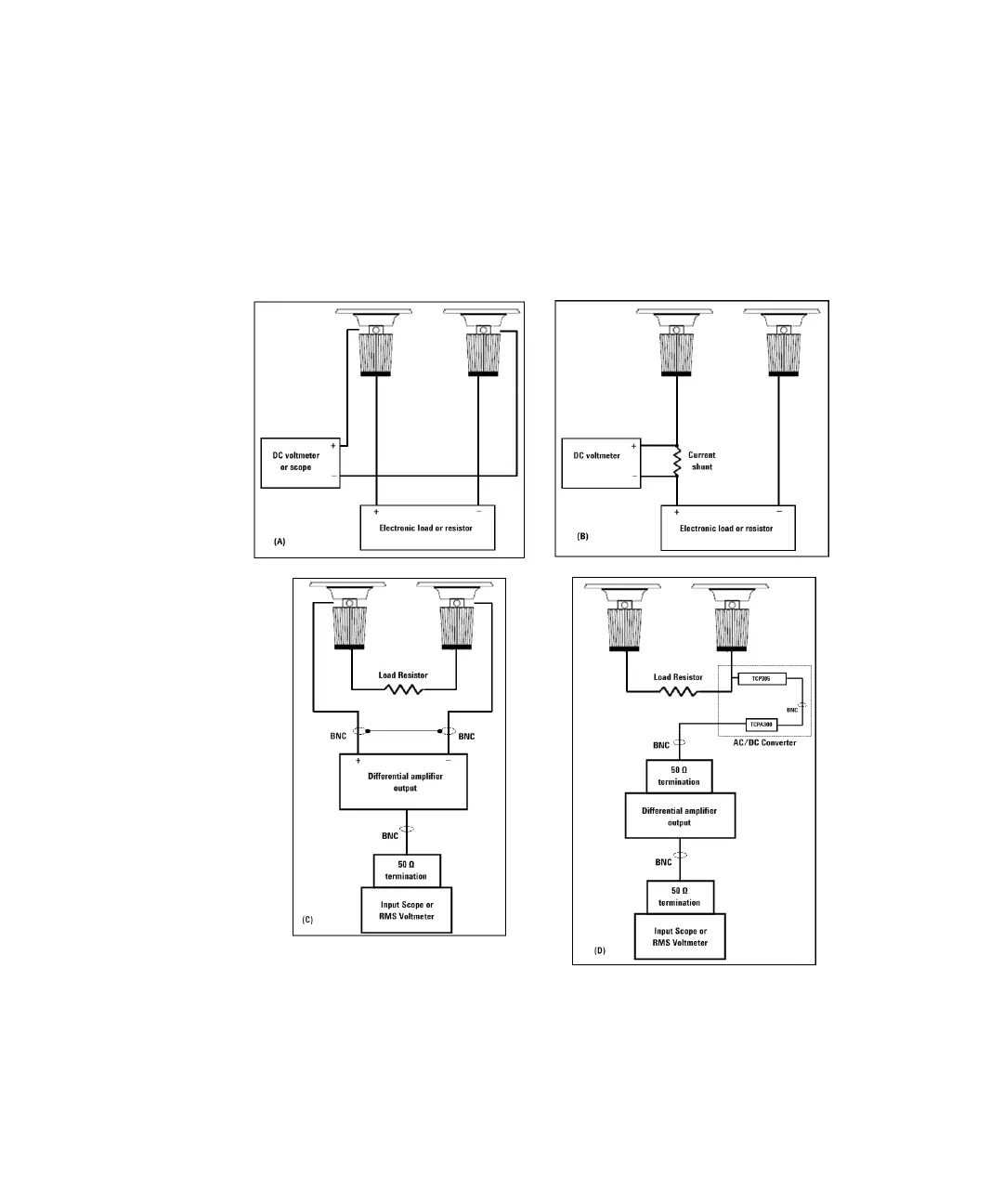

Figure 5-2 Test setups
