KFI UTV-DRS-K - Winch Wiring Procedure; Connecting Switch Wires to Contactor





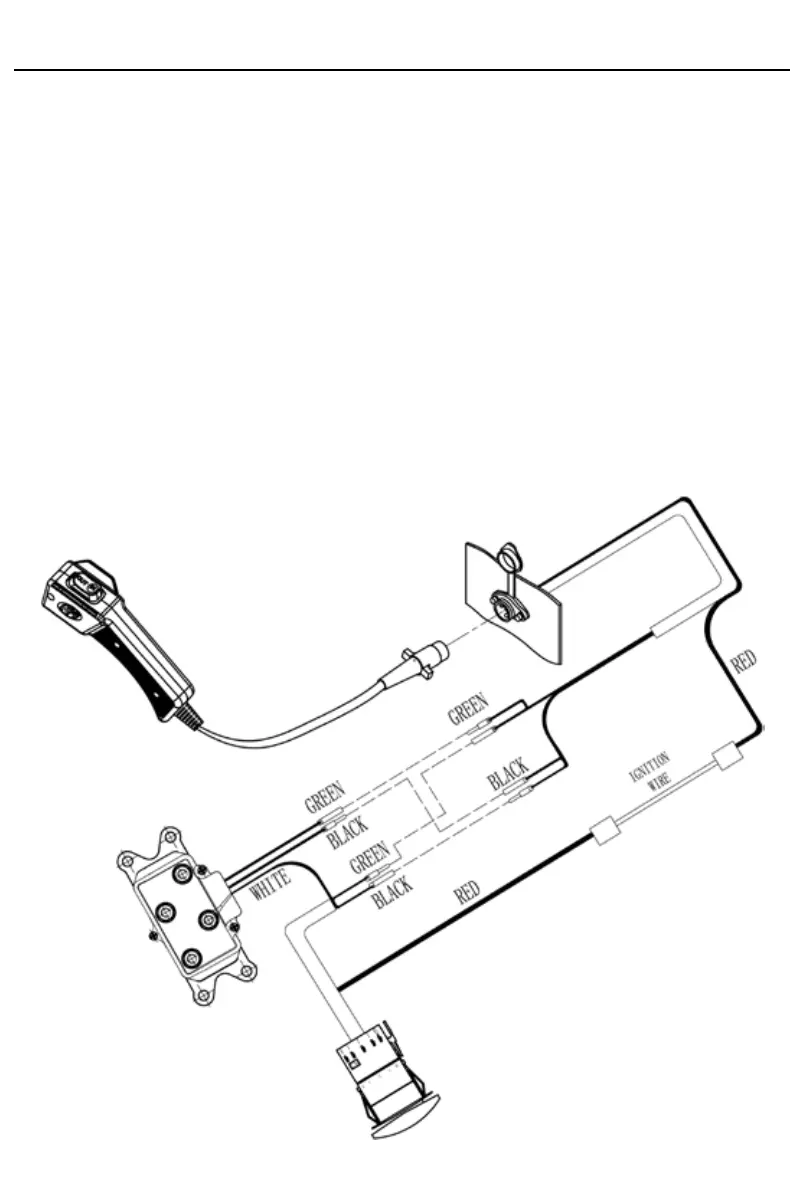

 This Rocker Switch Kit comes with a pre-wired plug with
harness and only requires the conection of the (4) wires at
the end to be conected to your winch’s electrical contactor/
solenoid.
– to be conected to the small GREEN wire on the Winch’s Contactor or the lead that
will run the winch direction -IN- if your contactor is wired differently than the KFI contactor.
– to be conected to the small BLACK wire on the Winch’s Contactor or the lead that
will run the winch direction -OUT- if your contactor is wired differently than the KFI contactor.
– to be conected to a power source that is HOT when the key or ignition is turned on.
– to be conected to the NEGATIVE (-) post on the contactor (typically with the Black
painted end) or grounded to the Frame.
If everything is wired correctly the switch will light up when your ignition is turned on and shut off
when you ignition is turned off. Also check to make sure IN runs the winch IN and OUT runds the
winch OUT. If the winch runs the opposite direction switch around the small GREEN and BLACK
wires to correct the issue.
