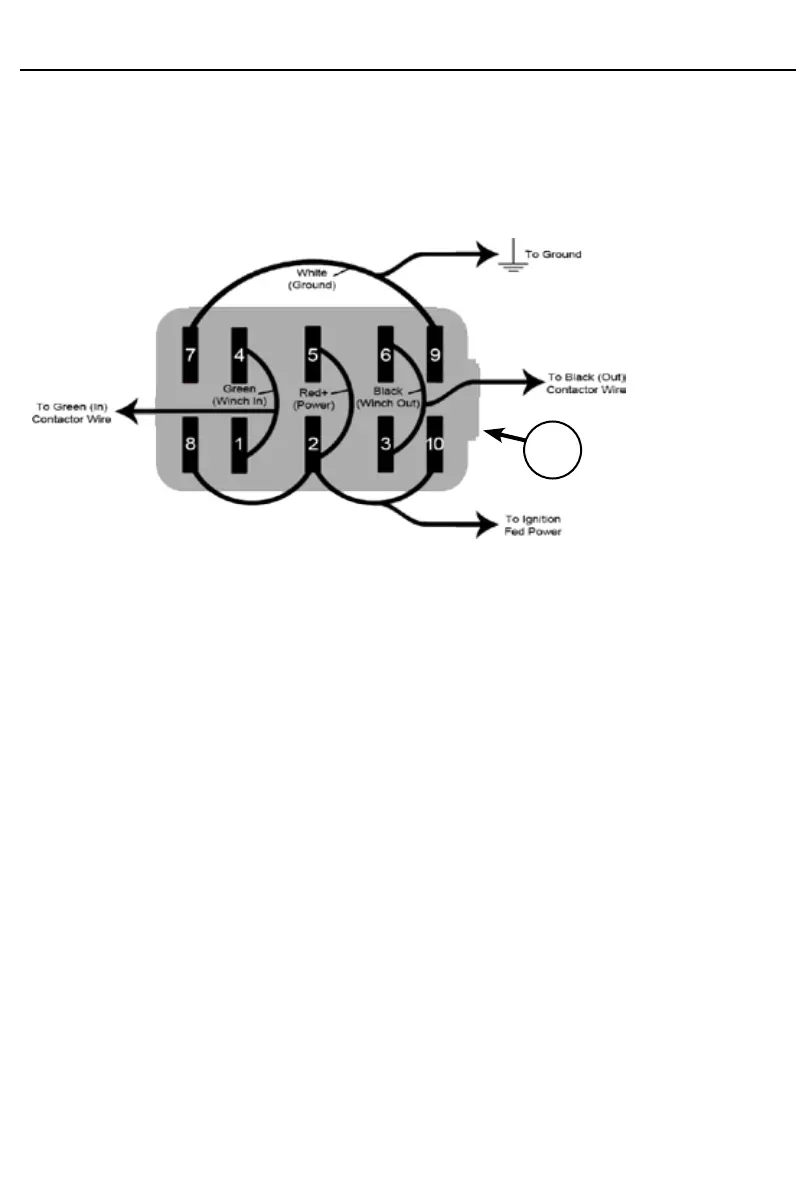

KFI UTV-DRS-K - Wiring Diagram and Connections; Detailed Switch Terminal Layout




– Power to Switch (+) (Connect to RED wire on contactor)
- #8 and #10 are for ignition power to LED’s
– Signal for Winch -IN- (Connect to small GREEN wire on contactor)
– Signal for Winch -OUT- (Connect to small BLACK wire on contactor)
– Ground (-) for LED (Connect to Frame ground or Battery (-) NEGATIVE post
on the contactor)
Tab
