– Used to power the rope
in or out of your winch drum. This switch
is a Double Pull/Double Throw (two
contact points per IN or OUT)
– Simple and quick
wiring harness with color coded wires
to connect to most ATV/UTV Winch
Contactors
1. Most UTV’s and SxS’s have predened switch locations that are pre-scribed or marked
for mounting and require nish cut with a knife.

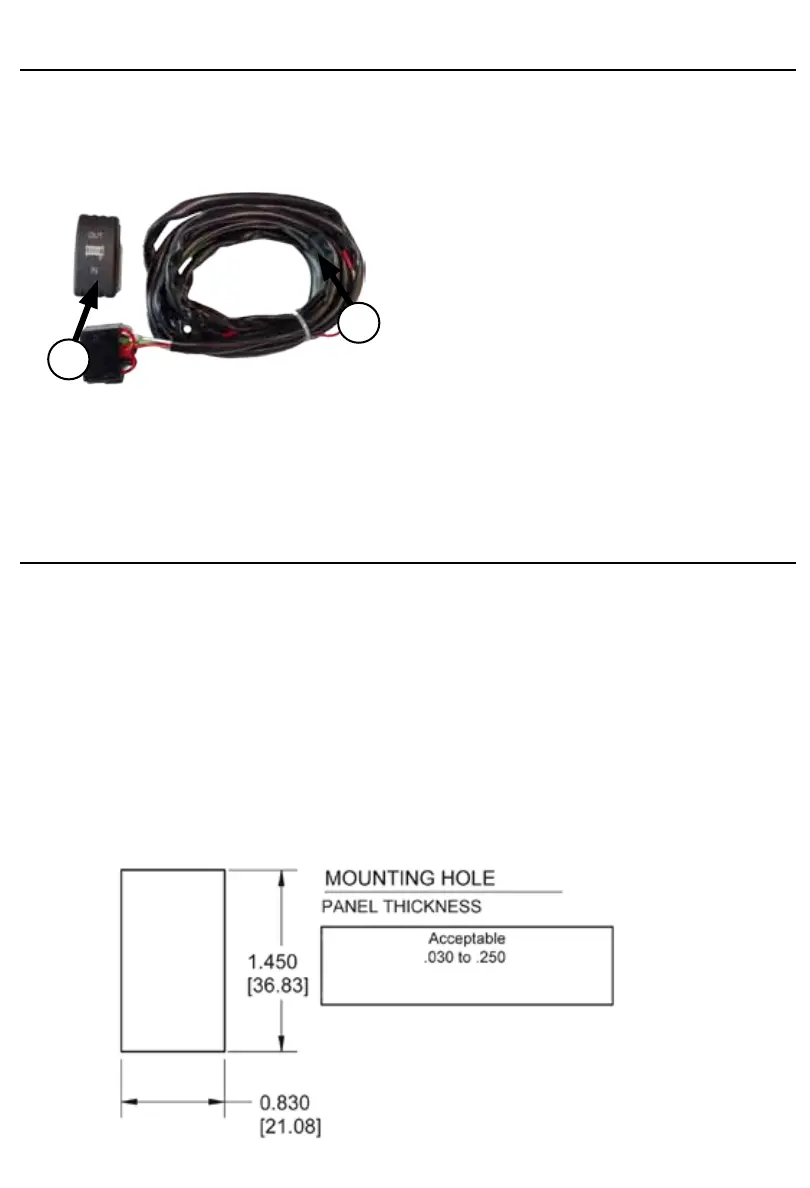

2. Use the cut-out dimensions shown below to cut-out the switch location If your dash
doesn’t have the pre-scribed areas.
3. Pull the plug end of the wiring harness through the hole and connect it to the rocker
switch outside the hole before inserting the switch.
Note: Insert the switch carefully, if the hole is to small trim some of the plastic.
This switch comes in two pieces for ease of installation, is not designed to come back apart
after installing.
1.
2.
