Maintenance
627

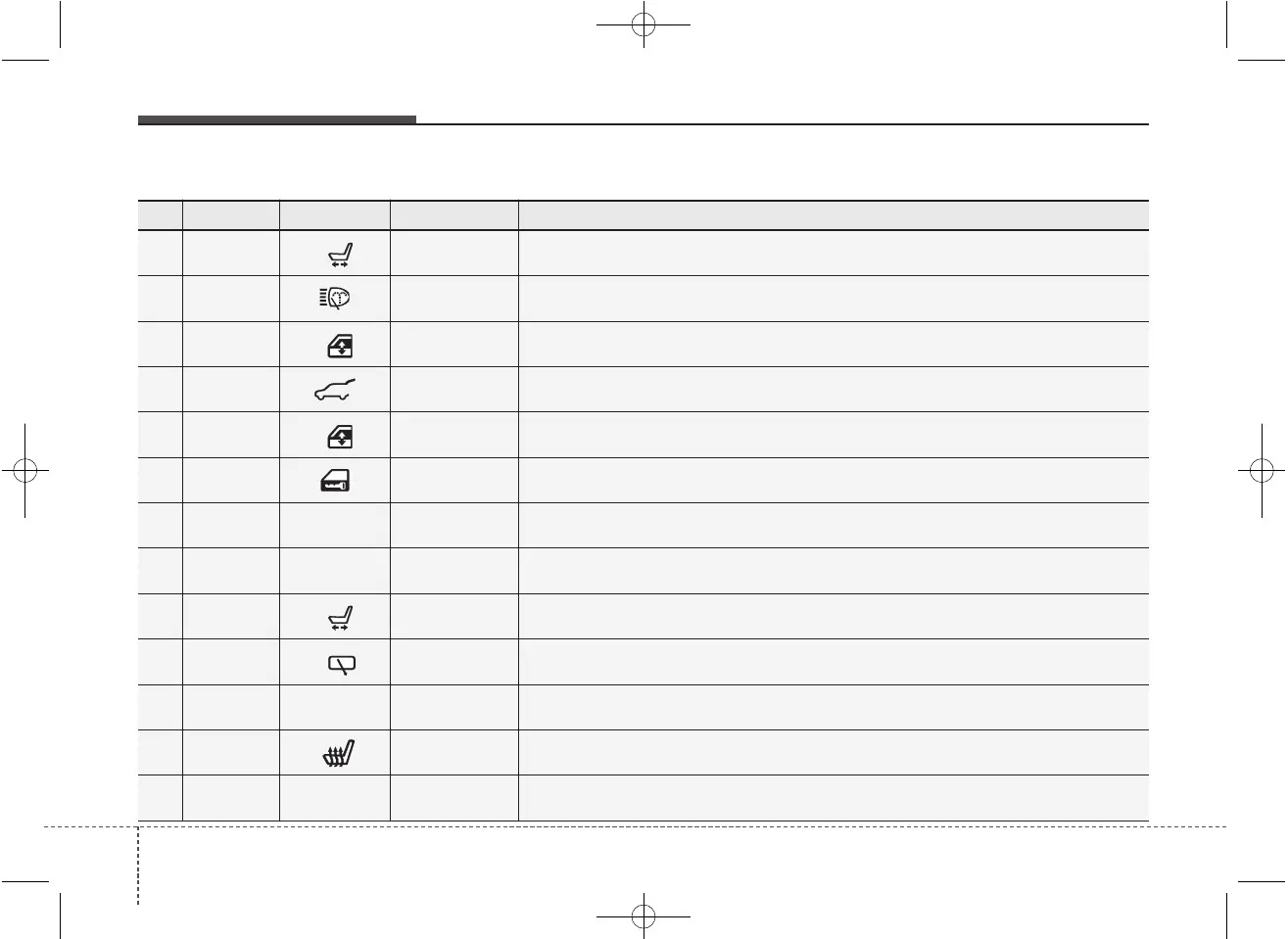

Instrument panel (Driver’s side fuse panel)
No. Fuse rating Symbol Fuse Name Protected component
1 30A
DRV
P/SEAT DRV
4WAY : Driver Lumbar Support Switch
6WAY : Driver Seat Manual Switch, Driver IMS Module
2 25A H/LP WASHER ICM Relay Box (Head Lamp Washer Relay)
3 25A
RH
P/WDW RH
Power Window Relay RH, Driver/Passenger Safety Power Window Module,
Rear Safety Power Window Module RH
4 10A T/GATE OPEN Tail Gate Relay
5 25A
LH
P/WDW LH
Power Window Relay LH, Driver/Passenger Safety Power
Window Module, Rear Safety Power Window Module LH
6 20A DR LOCK Door Lock/Unlock Relay, Dead Lock Relay
7 20A
SPAR
POWER
OUTLET2
POWER
OUTLET 2
Cigarette Lighter, Rear Power Outlet
9 20A
PASS
P/SEAT ASS Passenger Lumbar Support Switch
10 15A
RR
RR WIPER ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor
11 7.5A
MODULE
3
MODULE 3 Auto Light & Photo Sensor, AT lever (Shift Lock), Hazard Switch
12 15A
FRT
S/HEATER FRT Driver/Passenger Seat Warmer Module
13 10A
ACC
ACC
A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Convertor (With ISG),
Digital Clock, Smart Key Control Module, BCM, Outside Mirror Switch, Outside Mirror
