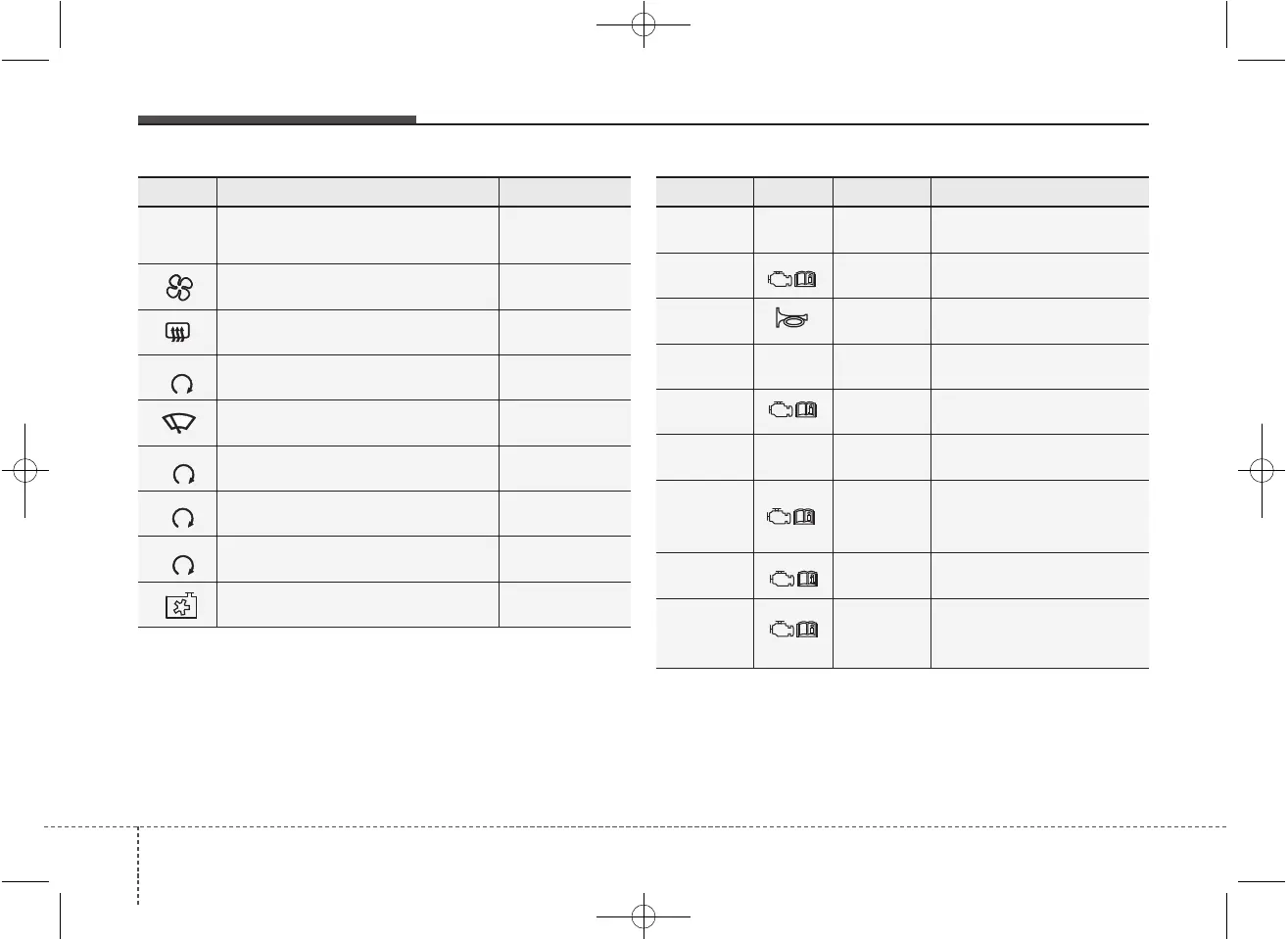

Symbol Relay Name Type
GSL
PTC
HEATER
PTC RELAY (GASOLINE) PLUG MICRO
BLOWER RELAY PLUG MICRO
REAR DEFOGGER RELAY PLUG MICRO
4 (IG2)
IG2 RELAY PLUG MICRO
FRT WIPER RELAY PLUG MICRO
3 (IG1)
IG1 RELAY PLUG MICRO
1
START RELAY PLUG MICRO
2 (ACC)
ACC RELAY PLUG MICRO
COOLING FAN PLUG MINI
Fuse rating Symbol Fuse Name Relay Name
15A
F/PUMP
F/PUMP FUEL PUMP RELAY
15A
3
ECU3 ECU
15A HORN Horn Relay
10A
INJECTOR
INJECTOR
INJECTOR, ECU,
FUEL PUMP RELAY
10A
2
ECU2 ECU
20A
IGN
COIL
IGN COIL
Ignition Coil #1/#2/#3/#4,
Condenser
10A
9
SENSOR2
E/R Fuse & Relay Box
(COOLING LOW RELAY),
Oil Control Valve #1/#2
20A
1
ECU1 ECU
10A
8
SENSOR1
Oxygen Sensor (UP/DOWN),
Variable Intake Solenoid Valve,
Purge Control Solenoid Valve
