Kia Ceed 2016 - Page 583

777
Maintenance

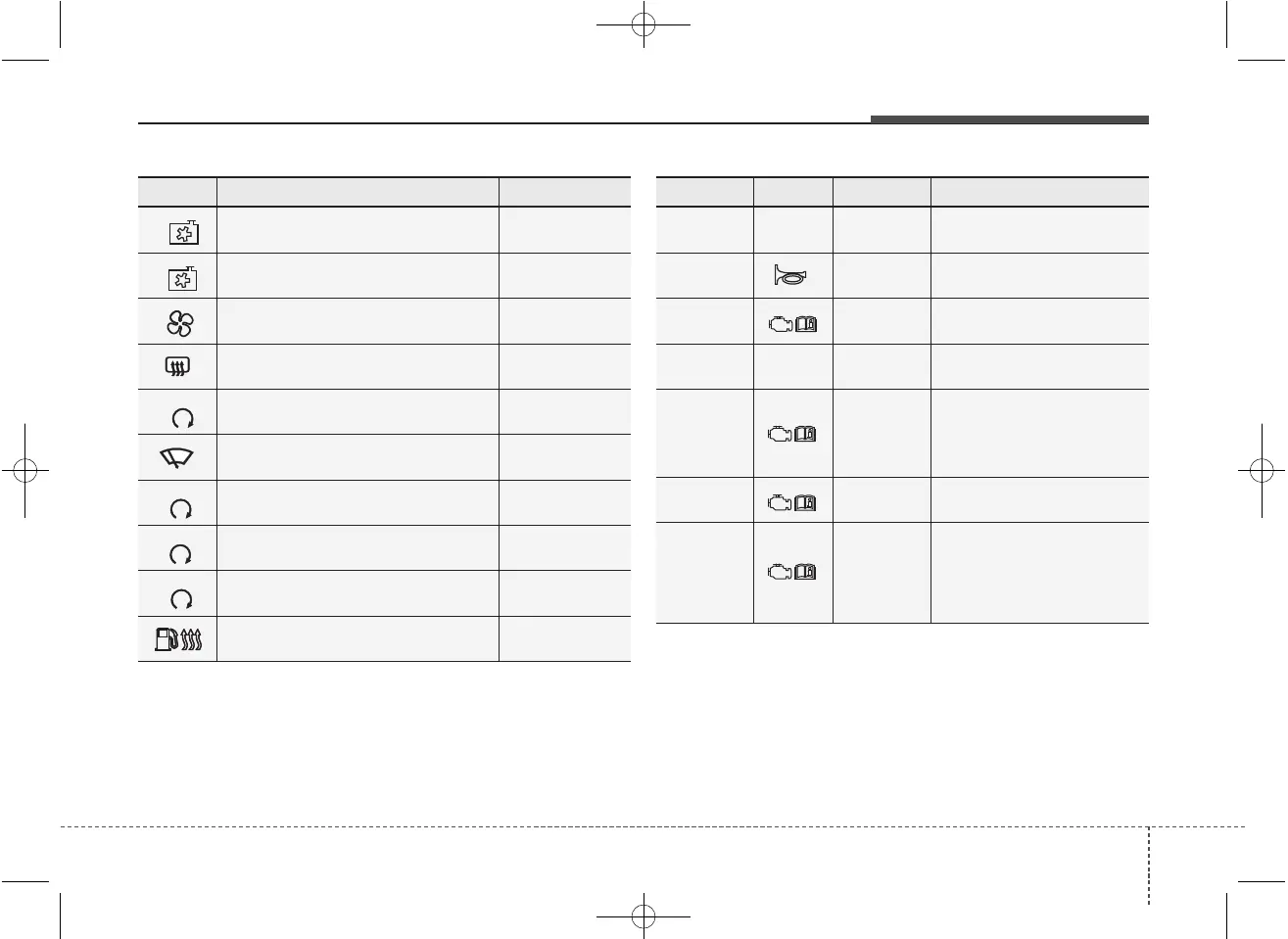

Symbol Relay Name Type
LO
COOLING FAN LOW RELAY PLUG MICRO
HI
COOLING FAN HIGH RELAY PLUG MICRO
BLOWER RELAY PLUG MICRO
REAR DEFOGGER RELAY PLUG MICRO
4 (IG2)
IG2 RELAY PLUG MICRO
FRT WIPER RELAY PLUG MICRO
3 (IG1)
IG1 RELAY PLUG MICRO
1
START RELAY PLUG MICRO
2 (ACC)
ACC RELAY PLUG MICRO
FUEL HEATER RELAY PLUG MINI
Fuse rating Symbol Fuse Name Relay Name
15A
SPARE
SPARE -
15A HORN HORN RELAY
10A
2
ECU2
Oil Level Sensor, Fuel
Pressure Control Valve
20A
SPARE
SPARE -
10A
9
SENSOR2
E/R Fuse & Relay Box
(COOLING FAN LOW RELAY),
Lambda Sensor (D4FB),
Stop Lamp Switch
20A
1
ECU1 ECU
10A
8
SENSOR1
DSL Box (PTC1 RELAY,
GLOW RELAY),
VGT Control Sensor,
Camshaft Position Sensor,
Electrical EGR Valve
