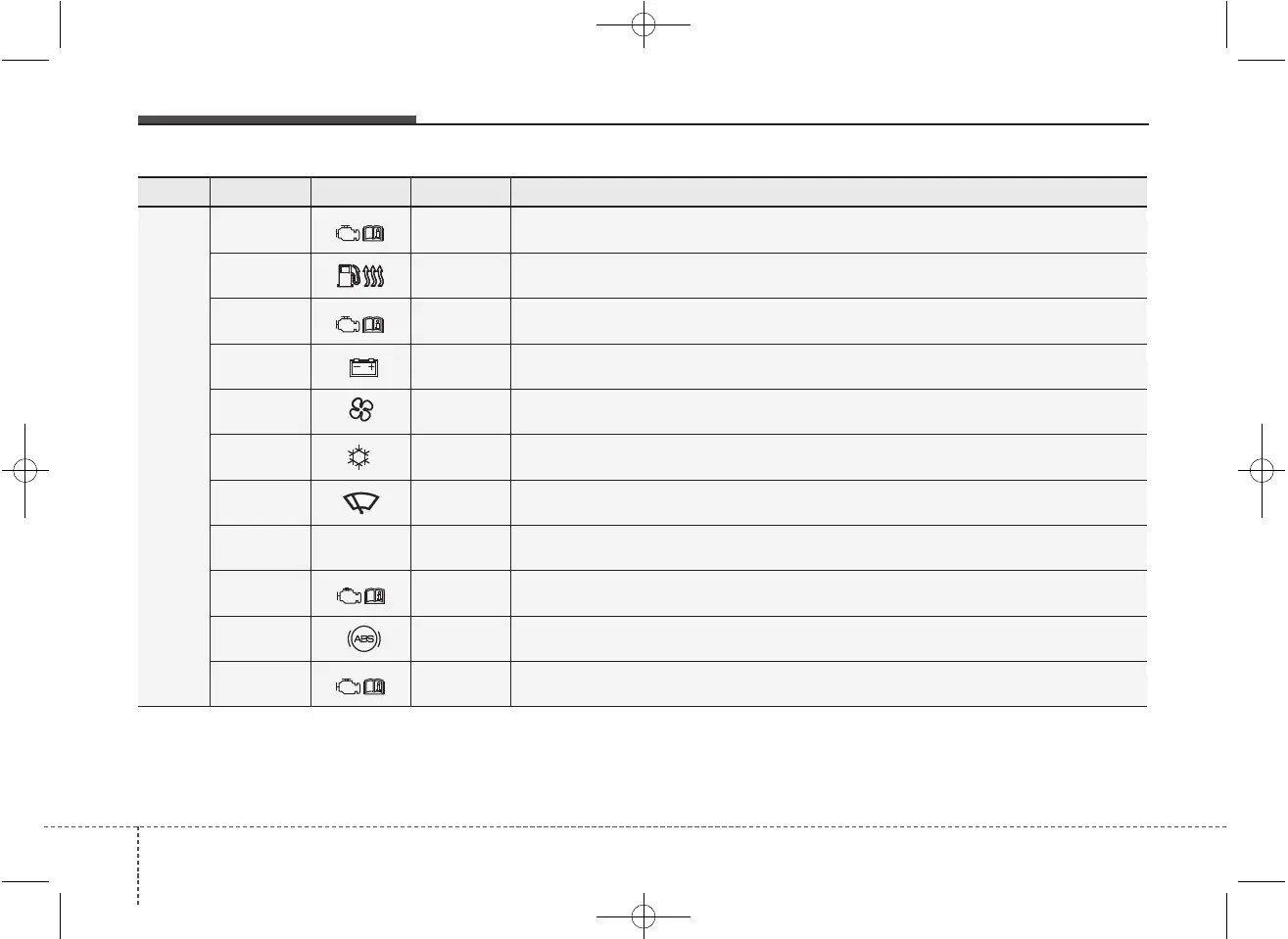

Fuse Fuse rating Symbol Fuse Name Protected component
FUSE
20A
5
TCU1 TCU
40A
FUEL
HEATER
FUEL HEATER RELAY
40A
7
EMS EMS BOX (Fuse No. - 1/2/3/4/5/6/7/8/9)
50A
B+3
B+3 Inner Fuse Panel (Leak Current Autocut Device, Fuse No. - 6/19/20/17/32/26/25)
50A BLOWER BLOWER RELAY
10A A/CON A/C Control Module
10A WIPER FRT ECU, Rain Sensor
10A
B/UP
LAMP
B/UP LP M/T : Back-up Lamp Switch, A/T : Transaxle Range Switch, TCU
15A
4
ECU4
Smart Key Control Module, Immobilizer Module, ECU, Air Flow Sensor,
Fuel Water Sensor
10A
3
ABS3 ESC Control Module, ABS Control Module, Yaw Rate Sensor
15A
6
TCU2 Transaxle Range Switch, TCU
