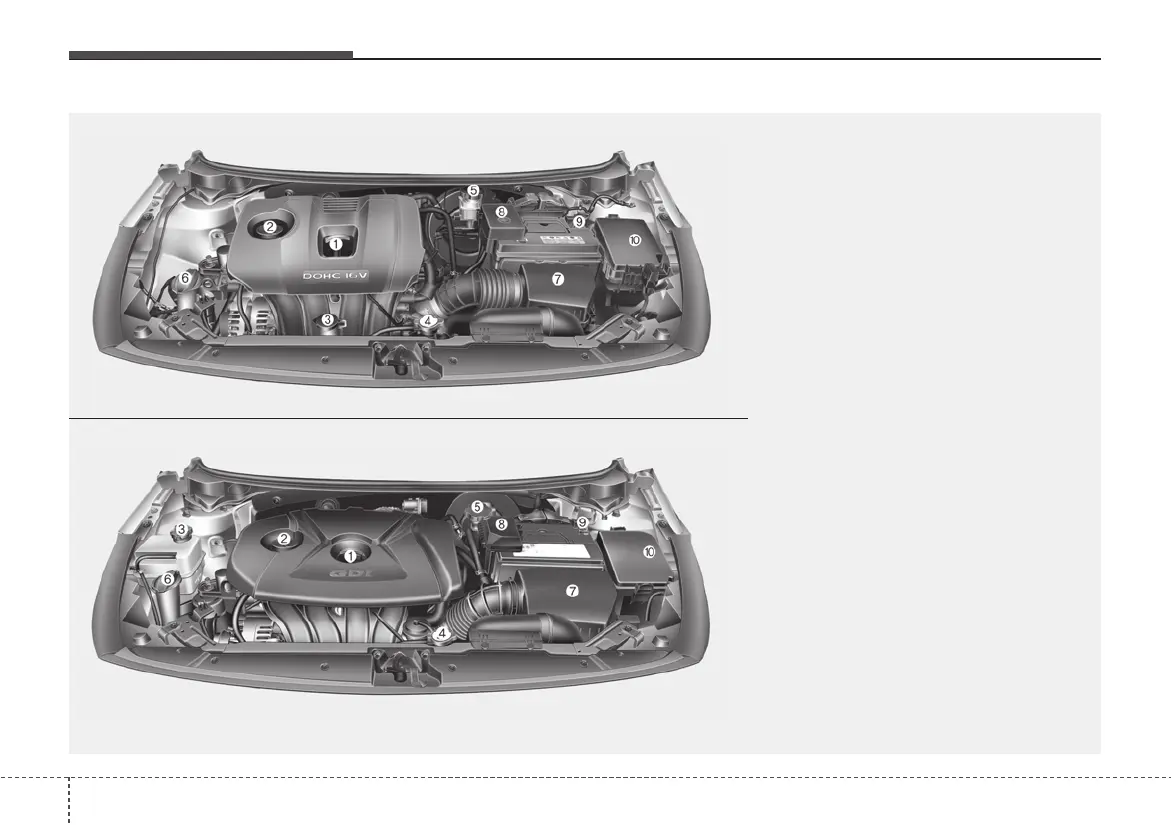

ENGINE COMPARTMENT
OYDM076017/OYDM076078
■■
Gasoline Nu 2.0 MPI Engine
❈ The actual engine room in the vehicle may differ from the illustration.
■■
Gasoline Nu 2.0 GDI Engine
1. Engine oil dipstick ..............................7-30
2. Engine oil filler cap.............................7-31
3. Engine coolant reservoir....................7-32
4. Radiator cap.......................................7-33
5. Brake/clutch fluid reservoir.................7-35
6. Windshield washer fluid reservoir ......7-36
7. Air cleaner..........................................7-37
8. Positive battery terminal.....................7-44
9. Negative battery terminal...................7-44
10. Fuse box ..........................................7-61
