Your vehicle at a glance
42

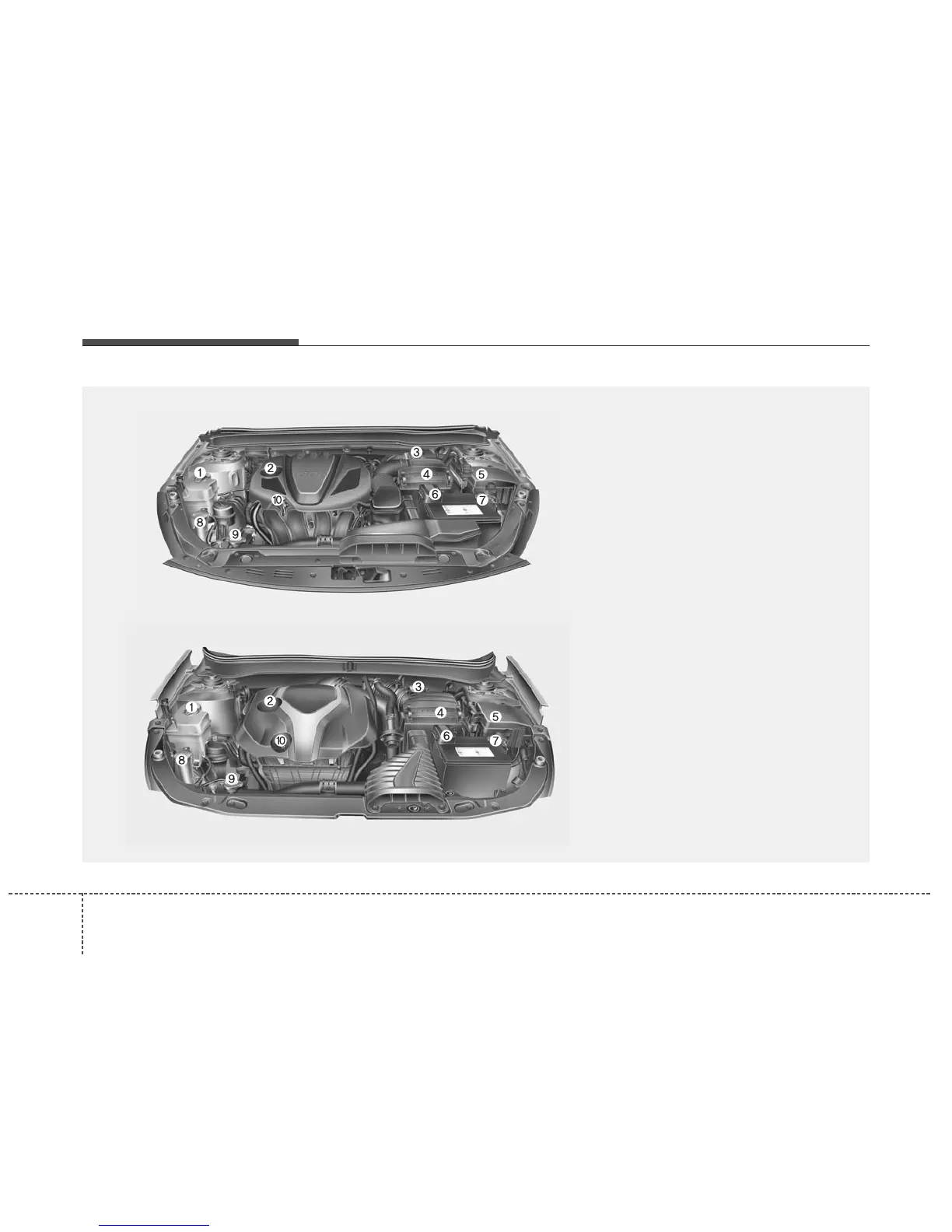

ENGINE COMPARTMENT
1. Engine coolant reservoir...................7-18
2. Engine oil filler cap ...........................7-15
3. Brake/clutch* fluid reservoir..............7-20
4. Air cleaner.........................................7-23
5. Fuse box...........................................7-48
6. Positive battery terminal ...................7-31
7. Negative battery terminal..................7-31
8. Windshield washer fluid reservoir.....7-21
9. Radiator cap .....................................7-19
10. Engine oil dipstick...........................7-15
* : if equipped
OTF070002/OYF071200N
* The actual engine room in the vehicle may differ from the illustration.
■■
2.4L Engine
■■
2.0L Engine
