INSTALLATION
Fitting Shunt Assembly
The shunt can be connected to a battery in two ways, bolted directly to the negative battery terminal
or connected via a short wire to the negative terminal.

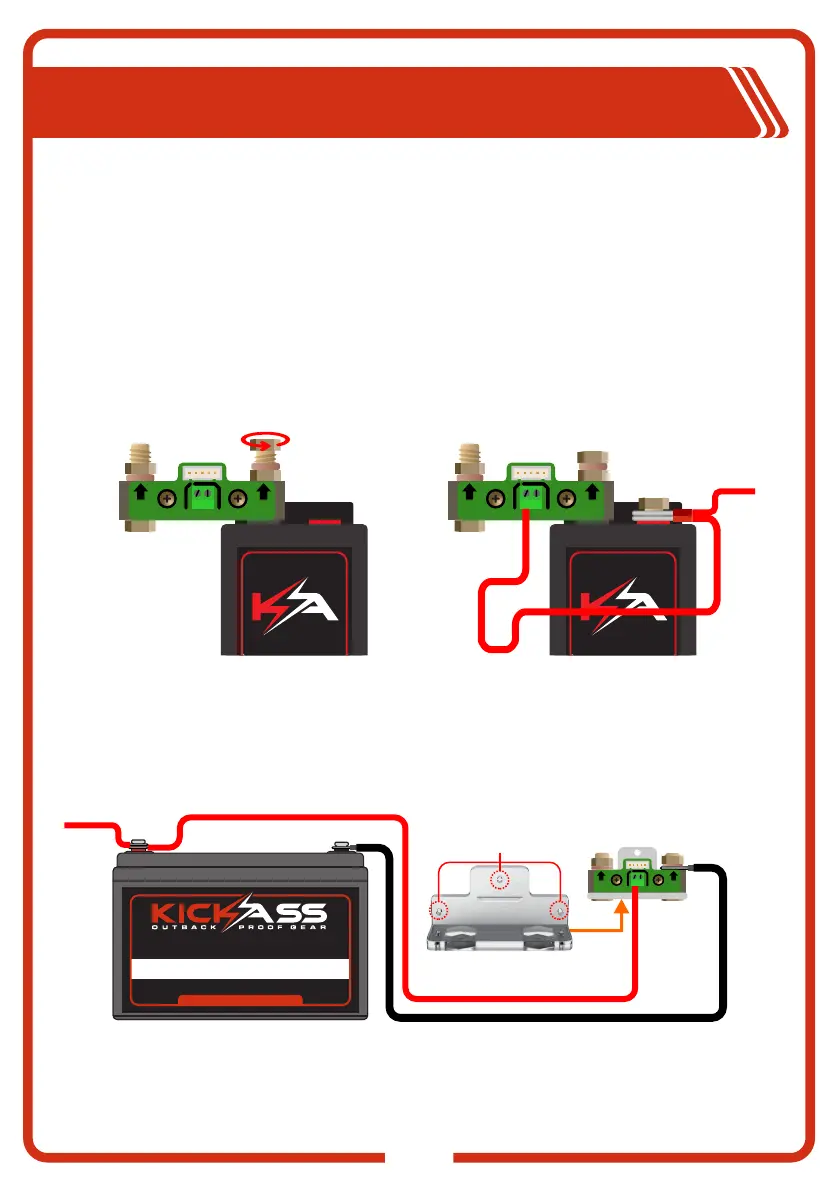

Option 1 - Direct to Battery
1. To bolt the shunt directly to the battery terminal, remove the bolts from the shunt assembly and
discard the shunt holder.
2. Using the included M8 bolt, washers and nut, attach the shunt side labeled "B-" to the negative
battery terminal.
3. Fit the B+ Wire by inserting the exposed conductor end into the small green terminal block
located on the shunt. This is labeled B+. Tighten down the the terminal block screw with a 2.4mm
flat head screw driver.
4. Now fit the ring terminal to the battery positive pole, along with the system positive loads.
B-
P-
B+ B+
B-
P-
B+ B+
Option 2 - Fit shunt assembly using holder
1. The shunt can be mounted to a flat surface using any of the pre drilled holes in the shunt holder.
2. Connect a cable assembly using M8 ring terminals and a minimum of 25mmsq wire, to the shunt
side labeled "B-". The cable assembly should be maximum of 300mm long. Connect the other
side of the cable assembly to the battery Negative terminal.
3. Follow steps 3 and 4 as above.
12 VOLT - 120A/H
www.kickassproducts.com.au
AGM - DEEP CYCLE
VISIT OUR WEBSI TE FOR MOR E DETAILS
B-
P-
B+ B+
(+) Loads
Shunt Mount
screw fixing points
CAUTION:
- Please check all connections are correctly terminated and secured tightly!
- Ensure the B+ Wire is fitted using circuit protection: Split conduit or an in-line fuse rated at 3A will
be suitable.
(+) Loads
