KickAss KAMPPTRC - Menu Block Diagram

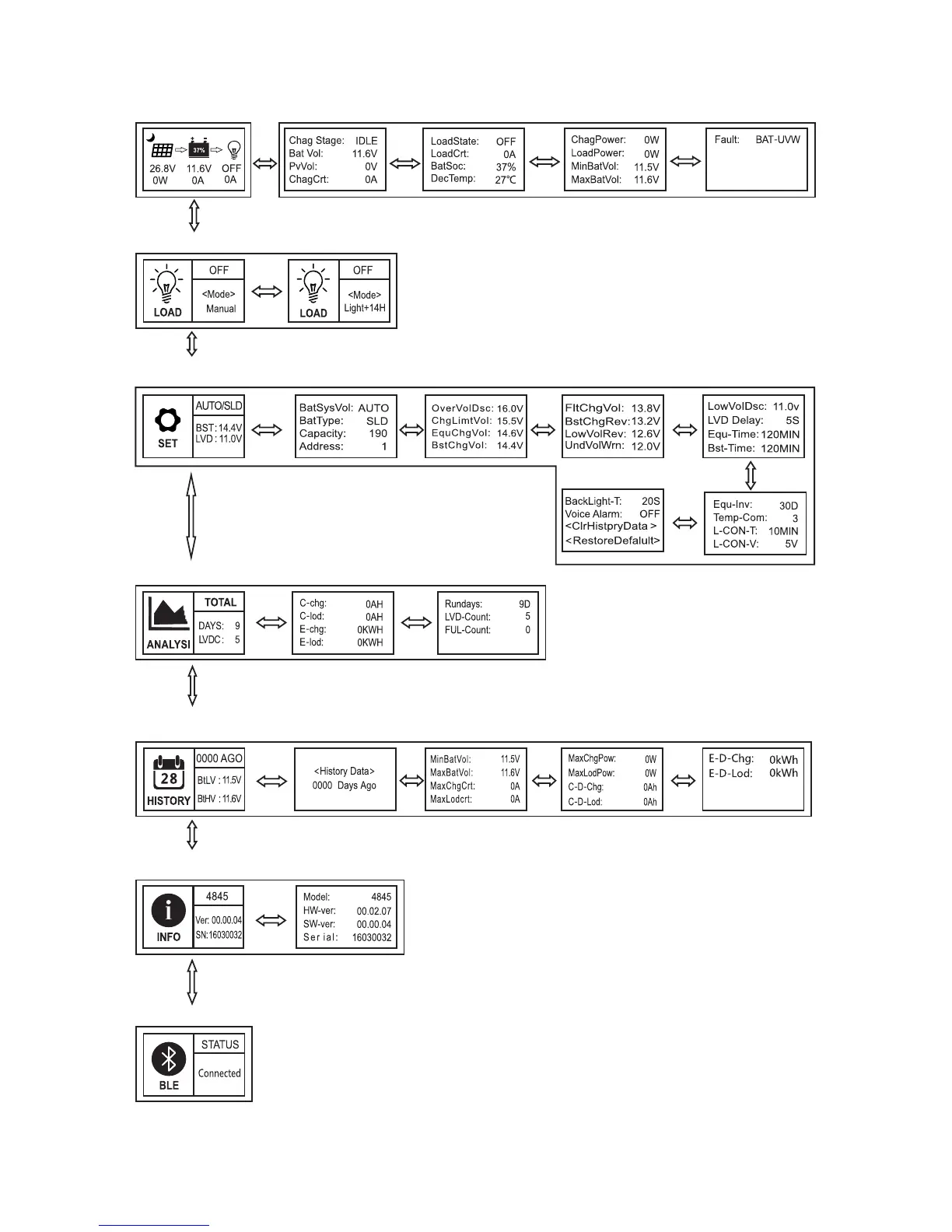

10.1 Menu block diagram
Main menu
Real-time
monitoring
Load mode
Parameters
setting
Statistic data
Historical data of
the current day
Device
information
Bluetooth connection state
(This menu is available only to the display units with the optional bluetooth function)
Refer to "Usage of Navigation Keys" for operations including entering into and
exiting each of the above menus, related parameters setting, etc.
