Kicker 40ss - Three Channel (Mixed Mono) Operation; Typical 3-Way System; Typical 4-Way System

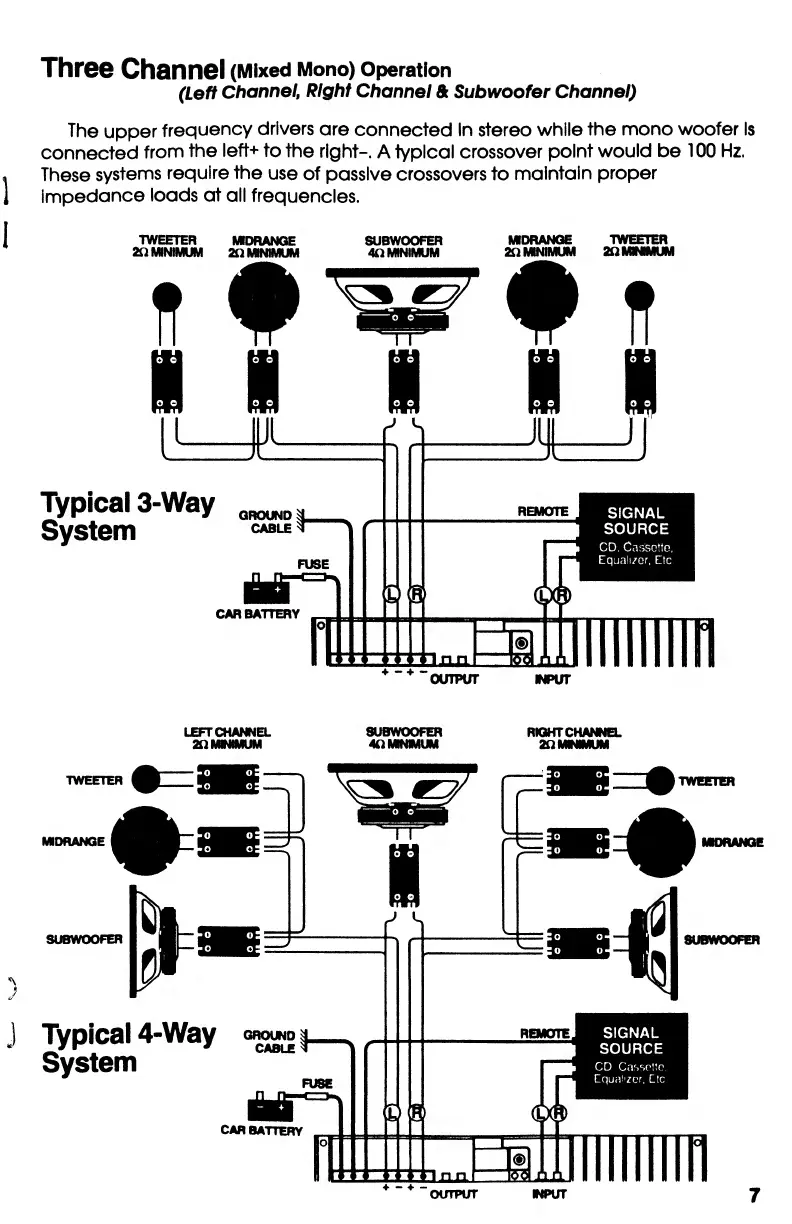

Three Channel (Mixed Mono) operation
(Left Channel, Right Channel A Subwoofer Channel)
The upper frequency drivers are connected In stereo while the mono woofer Is
connected from the left+ to the right-. A typical crossover point would be 100 Hz.
These systems require the use of passive crossovers to maintain proper
impedance loads at all frequencies.
TWEETER MDRANQE SUBWOOFER MDRANQE TWEETER
EOMNIMUM EOMMKUM 4aMNIMUM EaiMNIMUM ZnMNMUM
ft f Wt ft
LEFTCHANNEL SUBWOOFER RIQHTCHANNEL
2niyNNIMUM 4QMNMUM 2nMISMUM
