Kicker DX1400 - Page 6

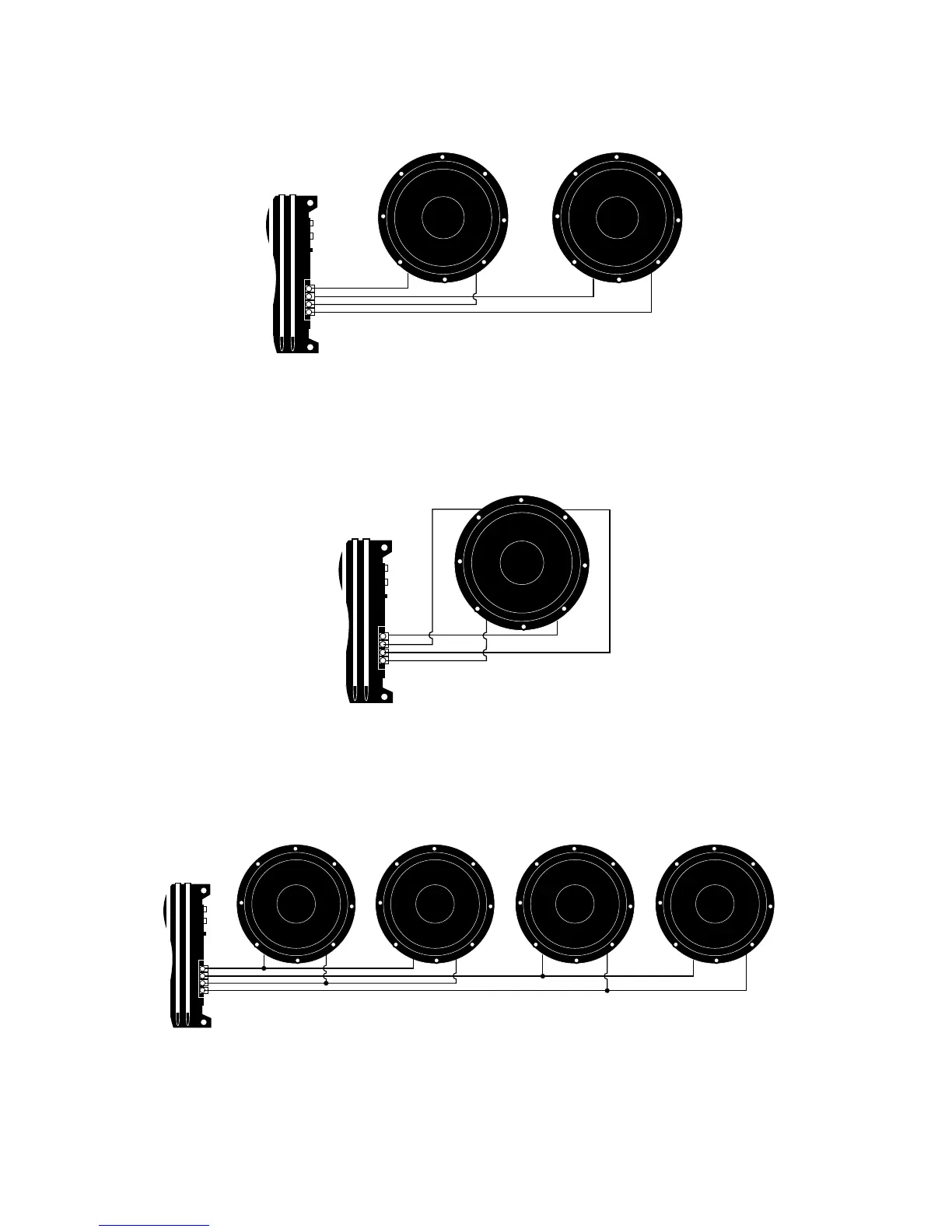

Four 8ohm woofers will give a 2ohm load
Suitable for use with the DX350 and DX700.
Using four 4ohm woofers will give a 1ohm load
to the DX1400.
6
(System Diagrams, continued)
2 ohm load for the DX350 and DX700
Using two 2ohm woofers will give a 1ohm load
suitable for use with the DXS1400.
Dual V.C. 4ohm with both coils wired this way
gives a 2ohm load to the amp for DX350 and DX700.
Using a dual 2ohm woofer will give a 1ohm load
suitable for use with the DX1400.
+
+
4 ohm 4 ohm
+
–
–
–
+
–
+
+
4 ohm 4 ohm
+
–
–
–
+
–
+
+
8 ohm 8 ohm
+
–
–
–
+
–
+
8 ohm 8 ohm
–
+
–
