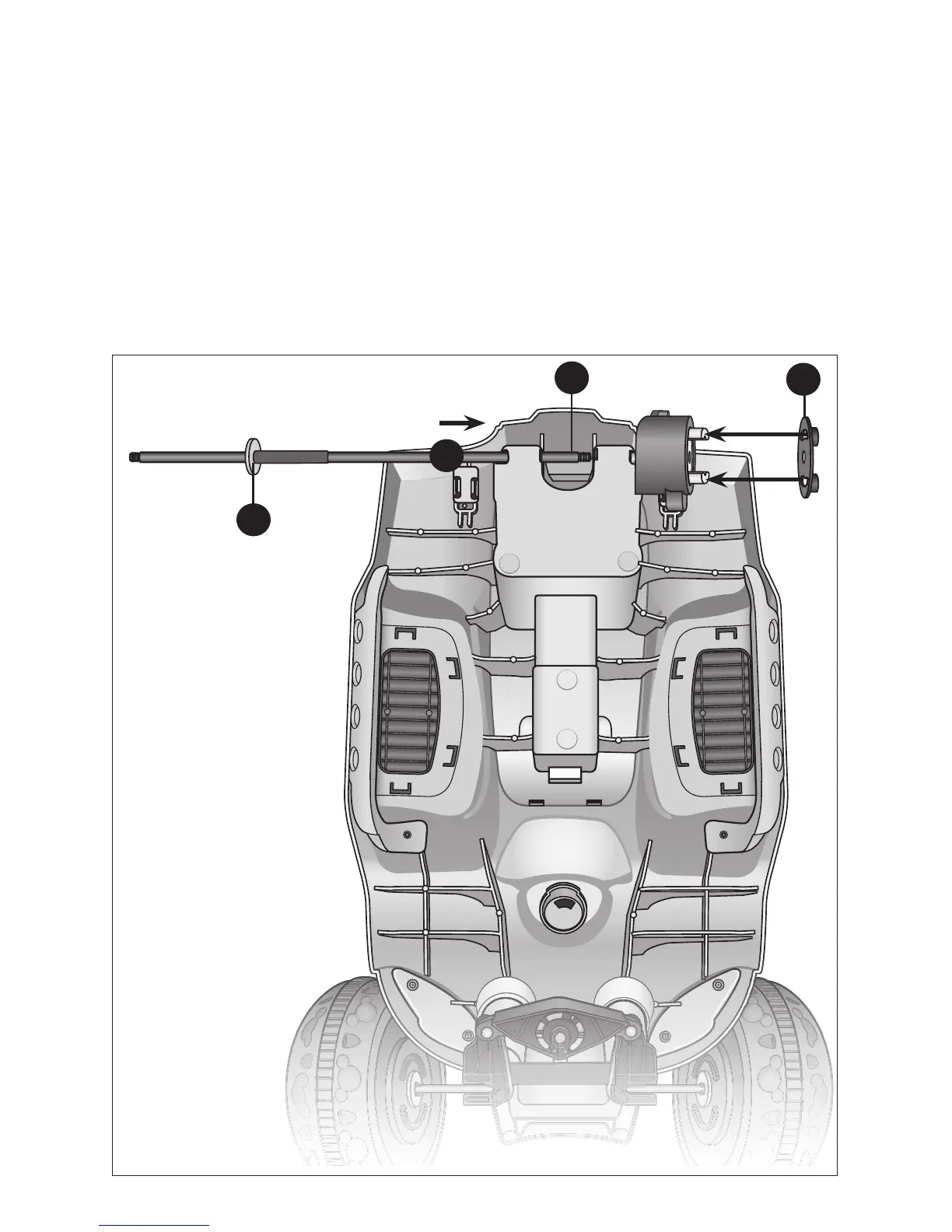

Using the spanner, remove the nut from the gear box end of the axle. Then
remove the small washer. Leave the large washer on the axle.
Posion the rear axle so the gear box end is on the side where the gear box is
located.
Slide the rear axle through the holes in the rear of the Quad body.
Posion the at side of the gear box pad facing towards the gear box, and insert
the gear box pad over the protrusions on the gear box.
Tip! If the gear box
has slipped out of place
during shipping, you will
need to re-insert the
gear box as shown
7
Large washer
1
2
3
4
Gear box pad
