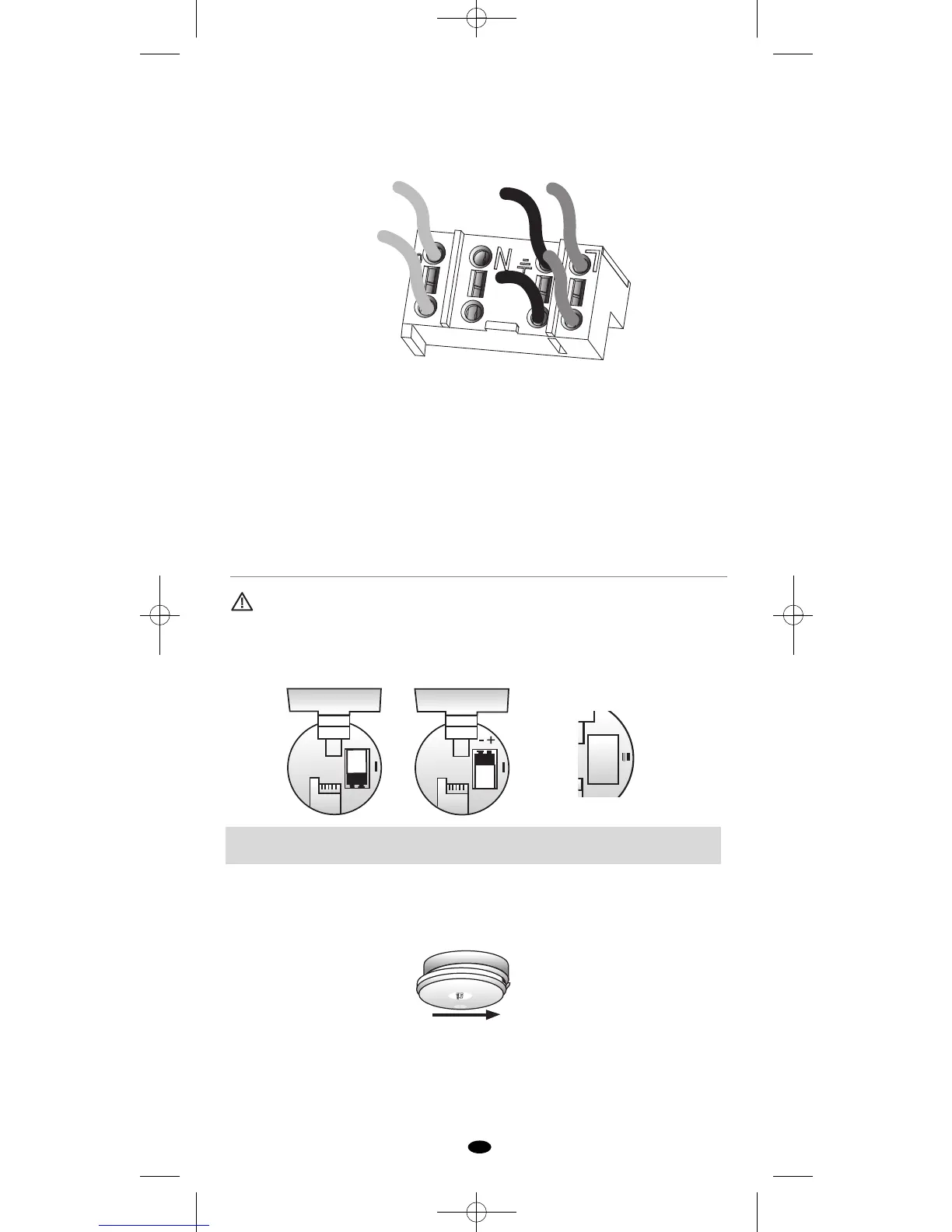

• Care should be taken to insure the wires are pressed firmly into the appropriate holes
on the terminal block (Do not use slots for wire retention, see figure d). Pull back
lightly on each wire to verify it is seated well.)
• Wire in house
cabling to appropriate terminals after prying off terminal cover block, ensuring that the
minimum space possible is taken up by incoming cabling, otherwise terminal cover
may not shut; this then prevents alarm from properly locating on base. To comply
outer sheathing must remain where cables come through ceiling.
• Carefully replace cover by locating leg as shown and then gently levering clip to full
close.
• If necessary the alarm can be unclipped from its base plate, by depressing where
shown(Figure b above) and just the base installed, at 1st fix. The alarm can then be
slid on to the hinge, and then slid home as illustrated below
(2)
.
d
5. Loose Battery Models
• The alarm will not locate without a battery in the compartment
Never remove or connect cable harness, without having disconnected mains power, or
arcing could occur, damaging the alarm.
On rechargeable models there is no battery compartment -
type of alarm is indicated on alarm.
• Reinstall on alarm base plate affix to ceiling and push (and hold) test button to
verify battery operation.
(2)
✔
✘
(1)
5
