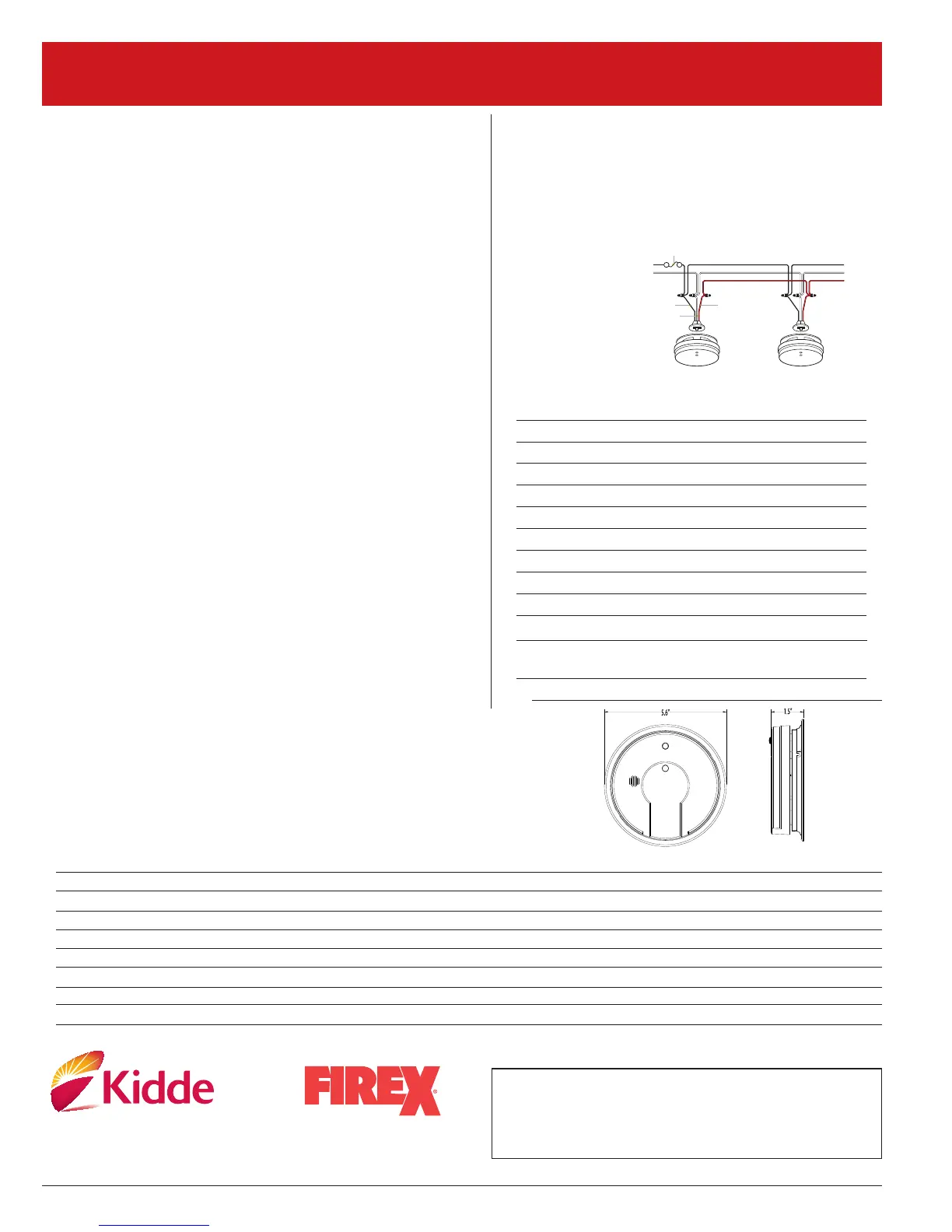

Architectural and Engineering
Specifications
The smoke alarm shall be Kidde model i12040 or approved equal. It shall be
poweredbya120VAC,60Hzsourcealongwitha9Vbatterybackup.The
unit shall incorporate an ionization sensor with nominal sensitivity of .50 to
.98%ft.Thetemperatureoperationrangeshallbebetween40˚Fand100˚F
(4˚Cand38˚C)andthehumidityoperatingrangeshallbe5%-95%relative
humidity.
The smoke alarm can be installed on any standard single gang electrical
box, up to a 4” octagon junction box. The electrical connection (to the alarm)
shall be made with a plug-in connector. A maximum of 24 Kidde devices can
be interconnected in a multiple station arrangement. The interconnect system
mustnotexceedtheNFPA(NationalFireProtectionAssociation)limitof18
initiationdevices,ofwhich12canbesmokealarms.With18initiatingdevic-
es(smoke,heat,CO,etc.),interconnected,itisstillpossibletointerconnect
6 strobe lights and or relay modules. The unit shall provide optional tamper
resistance that deters removal of the unit from the wall or ceiling.
The alarm shall include a test button that will electronically simulate the
presence of smoke and cause the unit to go into alarm. This sequence tests
theunit’selectronics,batteryandhorntoensureproperoperation.
 Theunitshallincludeapiezoelectrichornthatisratedat85decibelsat
10feet.TheunitshallincludeSmartHush
TM
feature that silences the unit for
approximately 7 minutes if a nuisance condition occurs. The unit shall also
includealowbatterywarningutilizingabriefalarmchirpevery30-40sec-
onds for a minimum of seven (7) days.
 TheunitshallincorporateredandgreenLEDindicators.ThegreenLED
(whenilluminated)indicatesthepresenceofACpower.TheredLED(located
undertheTEST/Hushbutton)hasfour modes of operation:
Standby Condition:TheredLEDwillflashevery30-40secondstoindicate
that the smoke alarm is operating properly. Alarm Condition: When the
alarmsensesproductsofcombustionandgoesintoalarmtheredLEDwill
flashoneflashpersecond.TheflashingLEDandpulsatingalarmwillcontinue
untiltheairiscleared.Whenunitsareinterconnected,onlytheredLEDof
the alarm that senses the smoke or is being tested (the originating unit) will
flash. All other units in the interconnected system will sound an alarm but
theirredLED’swillNOTflash. Alarm Memory: This smoke alarm is equipped
with an alarm memory, which provides a visual indication when an alarm has
beenactivated.TheredLEDwillilluminateforabout1.5secondsevery16
seconds to indicate the memory condition. Smart Hush
TM
Mode:TheredLED
willilluminatefor1.5secondsevery8seconds,indicatingthesmokealarmis
intheSmartHush
TM
Mode.
 TheunitshallataminimummeettherequirementsofUL217,NFPA72,
(chapter11),TheStateofCaliforniaFireMarshall,NFPA101(Oneand
twofamilydwellings)FederalHousingAuthority(FHA),HousingandUrban
Development(HUD).Itshallalsoincludea10-yearmanufacture’slimitedwarranty.
120V AC/DC Wire-in Smoke Alarm
Battery Backup
Part Number 21006378
Model i12040
Installation of Smoke Alarm
The smoke alarm must be installed to comply with all local codes having jurisdiction
inyourarea.Allwiringshallbeinaccordancewitharticles210and300.3(B)of
theUSNationalElectricalCode,ANSI/NFPA70andNFPA72.Themultiplestation
interconnect wiring must be in the same raceway as the AC power wiring. In addi-
tion the resistance if the interconnect wiring shall be a maximum of 10 ohms.
Make certain all alarms are wired to a single, continuous (non-switched) power
line, which is not protected by a ground fault interrupter. A maximum of 1000 ft.
of wire can be used in the interconnect system. Use standard UL listed household
wire as required by code.
FUSE OR CIRCUIT BREAKER
BLACK
WHITE
RED
L
N
First
Alarm
Additional
Alarms
Ordering Information
Technical Specifications
Model Number: i12040
UPC: 0-47871-40381-3
PowerSource: 120VAC (
80mA)with9VBatteryBackUp
Sensor: Ionization
AudioAlarm: 85dBat10ft
TemperatureRange: 40˚F(4.4˚C)to100˚F(37.8˚C)
HumidityRange: 5%-95%relativehumidity(RH)
Size: 5.6”indiameterx1.55”depth
Weight: .5lb
Interconnects: Up to 24 Kidde devices
Wiring: Quick-connectplugwith8”pigtails
LED: Red,4modesofoperation
Green, indicates AC power
Warranty: 10 year limited
*Not for sale by individual unit **Includes Wiring Adapters
Ordering Dimensions Case/ Layers/ Skid
Number UPC I2F5 Pack Quantity (w x d x h inches) Weight Skid Skid Weight
N/A 0-47871-40381-3 N/A individual* 5.75x1.5x5.75 0.5lbs N/A N/A N/A
21006378 0-47871-40381-3 100-47871-40381-0 CutCase(6units) 6.5x13.25x6 3lbs 147 7 441lbs
21006373 0-47871-09970-2 200-47871-09970-2 BulkPack(6units) 6x10.5x6 3lbs 147 7 441lbs
21006930 0-47871-40381-3 300-47871-40381-4 DisplayPallet(36units) 20 x 24 x 40 20lbs 4 1 90 lbs
Alk.Btry21006928 0-25417-12751-5 100-25417-12751-2 CutCase(6units) 6.5x13.25x6 3lbs 147 7 441lbs
Lith.Btry21006929 0-25417-01276-7 100-25417-01276-4 CutCase(6units) 6.5x13.25x6 3lbs 147 7 441lbs
21006375** 0-47871-27552-6 100-47871-27552-3 CutCase(6units) 6.5x13.25x6 3lbs 147 7 441lbs
21006372** 0-47871-09969-9 100-47871-09969-3 CutCase(3TwinPacks) 6.5x13.25x6 3lbs 147 7 441lbs
1016 Corporate Park Drive
MebaneNC27302
1-800-880-6788
www.Kidde.com
Distributed by:
P/N: KL-i12040 sheet rev. 01-2009

Kidde I12040 Specifications

Power

power source	120VAC (80mA) with 9V Battery Back Up
interconnect resistance	maximum of 10 ohms
interconnect wire length	maximum of 1000 ft

Operating Environment

temperature range	40˚F (4.4˚C) to 100˚F (37.8˚C)
humidity range	5%-95% relative humidity (RH)
sensor	Ionization

Audio and Visual Indicators

audio alarm	85dB at 10ft
red LED modes	4 modes of operation
green LED function	indicates AC power

Weight and Dimensions

diameter	5.6 inches
depth	1.55 inches
weight	0.5 lbs
