nect up to a total of 6 remote signaling devices and/or relay modules.
• When mixing models which have battery backup (1275, 1276, 1285, 1296,
i12040, i12040A, i12060, i12060A, i12080, i12080A, i4618, i4618A, PE120,
P12040, PI2000, PI2010, KN-COPE-i, KN-SM-FM-i, KN-COSM-IB,
KN-COSM-IBA, HD135F, KN-COB-IC, KN-COP-IC, i12010S, i12010SCO,
RF-SM-ACDC) with models without battery backup, (1235, i12020, i12020A,
KN-COSM-I,120X, SM120X, CO120X, SL177i, SLED177i) be advised that the
models without battery backup will not respond during an AC power failure.
• The maximum wire run distance between the first and last unit in an intercon-
nected system is 1000 feet.
• Figure 4 illustrates interconnection wiring. Improper connection will result in
damage to the alarm, failure to operate, or a shock hazard.
• Make certain alarms are wired to a continuous (non-switched) power line.
NOTE: Use standard UL listed household wire (as required by local codes) avail-
able at all electrical supply stores and most hardware stores.

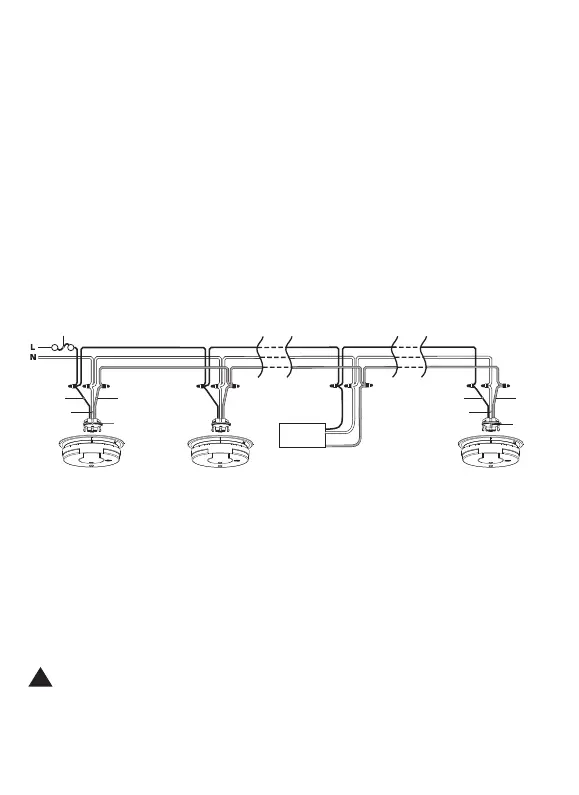

FIGURE 4 INTERCONNECT WIRING DIAGRAM
WIRES ON ALARM HARNESS CONNECTED TO
Black Hot Side of AC Line
White Neutral Side of AC Line
Red Interconnect Lines (Red Wires) of Other
Units in the Multiple Station Set up
BATTERY INSTALLATION
See MAINTENANCE (section 6) for battery installation.
CAUTION! IF THE BATTERY REMINDER FINGER(S) ARE NOT HELD
DOWN IN THE BATTERY COMPARTMENT BY THE BATTERY, THE BATTERY
DOOR WILL NOT CLOSE, THE AC QUICK CONNECTOR WILL NOT ATTACH
TO THE ALARM, AND THE ALARM WILL NOT ATTACH TO THE TRIM RING
(SEE SECTION 6, FIGURE 9).
FUSE OR CIRCUIT BREAKER
RED
BLACK
WHITE
B
LACK
WHITE
R
ED
CONNECTOR
CONNECTOR
Kidde
Relay Module
SM120X
First
Alarm
Additional
Alarm
Optional
Accessory
Additional
Alarm
