FUSE OR CIRCUIT BREAKER
WHITE
RED
BLACK
QUICK
CONNECTOR
KIDDE
Relay Module
# SM120X
Optional Accessory
24
23
1
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
Live
Neutral
2. Installation

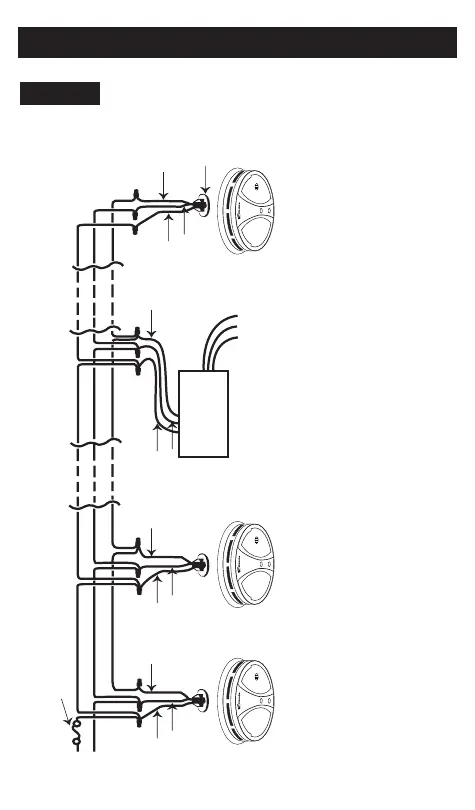

INTERCONNECT WIRING
IMAGE 3
WIRES ON ALARM HARNESS
Black Connected to hot side of AC line.
White Connected to neutral side of AC line.
Red Connected to interconnect lines (red wires) of other units in a multiple station set-up.
