FUSE OR CIRCUIT BREAKER
WHITE
RED
BLACK
QUICK CONNECTOR
KIDDE
Relay Module
# SM120X
Optional Accessory
24
2 3
1
WHITE
RED
BLACK
WHITE
RED
BLACK
WHITE
RED
BLACK
Live Neutral
Installation
9

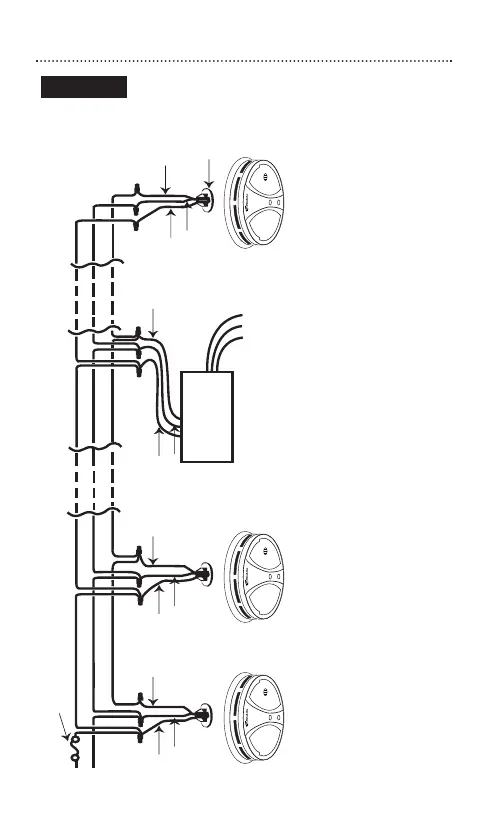

IMAGE 3
WIRES ON ALARM HARNESS Black Connected to hot side of AC line.
White Connected to neutral side of AC line.
Red Connected to interconnect lines (red wires)
of other units in a multiple station set-up.
INTERCONNECT WIRING
