Kidde SL177i User Manual

E
L-
Multiple station (24) interconnect unit, interfaces directly with Kidde Safety
Ion Smoke Alarm models: 1235, 1235CA, 1275, 1275CA, 1285, 1285CA
Photo smoke alarms: PE120, PE120CA,
Photo / Ion smoke alarms: PI2000, PI2000CA
Heat Alarm models: HD135F, HD135FCA
CO/ Ion Smoke alarm models: KN-COSM-IB , KN-COSM-IBCA
Carbon Monoxide Alarms Model: KN-COB-IC, KN-COP-IC
FLASH RATE (smoke alarm event) Constant 1 flash per second nominal
FLASH RATE (CO alarm event) Intermittent 1 flash per second nominal (approximately 4
flashes, followed by approximately 5 seconds OFF)
MODEL NUMBER SL177 ( 2 WIRE DIRECT CONNECT UNIT )
ELECTRICAL RATING Special Application 110-130 VAC
Maximum Operating RMS Current 389 mA
Note: This device was only tested over the range 110-130 VAC. Do not take 80% and110% of these
ratings into account during installation as this was not tested for.
FLASH RATE Constant 1 flash per second nominal
MODEL NUMBER SL177I & SL177
TEMPERATURE LIMITS 32
o
F (0
o
C) TO 120
o
F (49
o
C)
MOUNTING Wall or Ceiling,
APPLICATIONS Primary Direct or Indirect and Supplementary
LIGHT OUTPUT 177 Candela minimum. (on axis measurement)

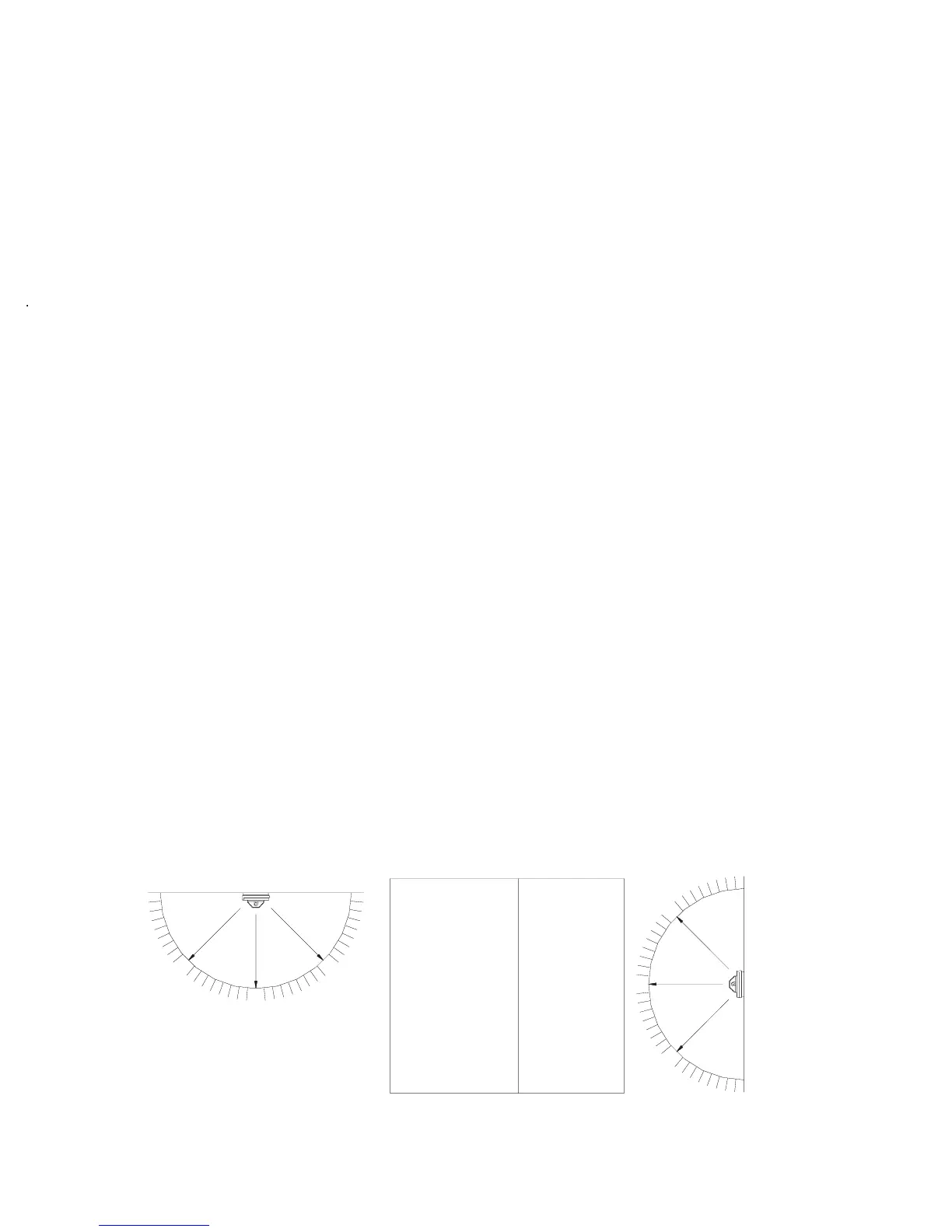

The following diagram shows that the light intensity gradually decreases as the Viewing angle is
increased. Use this information to determine the best location for the strobe light.
WALL
CEILING
25 90
25 85
30 80
30 75
35 70
35 65
40 60
45 55
55 50
75 30-45
90 5-25
100 0
(LIGHT INTENSITY) (IN DEGREES)
PERCENT ANGLE
90°
90°
90° 90°
0°
0°
45°
45°
45° 45°
SOURCE
LIGHT
SOURCE
LIGHT
WALL
CEILING
25 90
25 85
30 80
30 75
35 70
35 65
40 60
45 55
55 50
75 30-45
90 5-25
100 0
(LIGHT INTENSITY) (IN DEGREES)
PERCENT ANGLE
90°
90°
90° 90°
0°
0°
45°
45°
45° 45°
SOURCE
LIGHT
SOURCE
LIGHT
