MODEL SL177 WIRING INSTRUCTIONS: For A.C. QUICK CONNECT 2 WIRE HARNESS.
Figure 2 illustrates the proper SL177 wiring. Improper connection will result in; damage to the strobe
light or alarms, failure to operate, or a shock hazard.

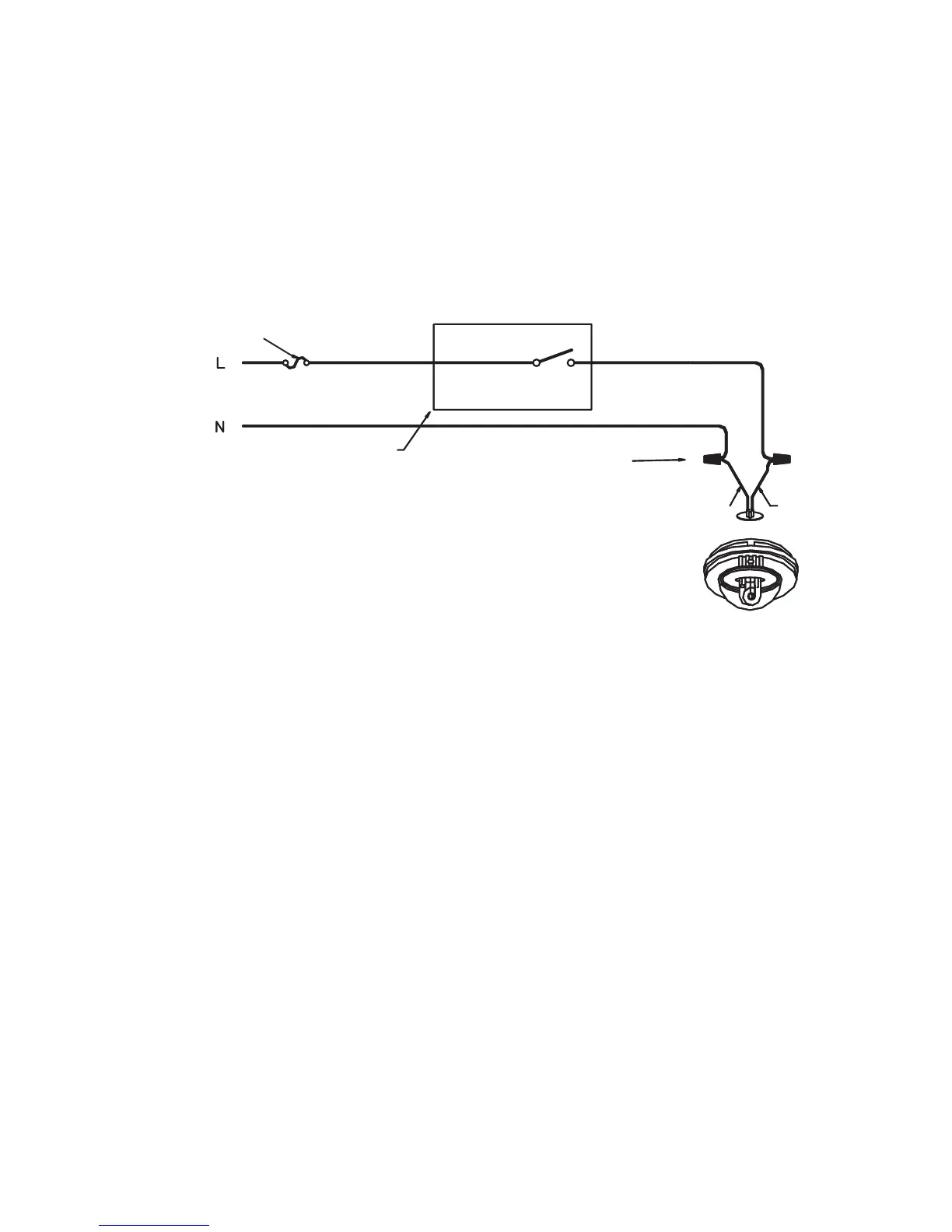

WIRING DIAGRAM FOR SL177.
WIRE ON STROBE LIGHT HARNESS ------------------------ CONNECTED TO
BLACK ---------------------- HOT SIDE OF AC LINE
WHITE ------------------------ NEUTRAL AC LINE
MOUNTING INSTRUCTIONS;
• A trim ring is provided on the back of the strobe light. This trim ring is installed on the
electrical box between the electrical box and the strobe light.
• Remove the trim ring from the back of the strobe light by holding the trim ring and
twisting the strobe light in the direction indicated by the "OFF" arrow on the cover.
CAUTION THIS UNIT IS SEALED. THE COVER IS NOT REMOVABLE! After selecting the
proper strobe light location as described in section 3, and wiring the AC QUICK CON-
NECT harness as described in the WIRING INSTRUCTIONS, attach the trim ring to the
electrical box (See fig. 3).
•
Use a screwdriver to punch out only the pair of holes in the trim ring that match your
type of electrical box or plaster ring. Mount the trim ring to the electrical box using the
appropriate holes. NOTE: Use the circle, square, and octagon markings near each
mounting hole in the trim ring to help you select the correct mounting holes (see fig. 3)
• Pull the AC QUICK CONNECTOR through the center hole in the ring and mount the
ring, making sure that the mounting screws are positioned in the small ends of the
keyholes before tightening the screws. (See fig. 3)
•
Plug the AC QUICK CONNECTOR into the back of the strobe light, (see fig. 4) mak-
ing sure that the locks on the connector snap into place.
•
If you have finished all the WIRING, AND TRIM RING MOUNTING STEPS, You can
install the strobe light on the trim ring. Alignment marks are provided on the side of
/
-
