PLZ-U Application Operation 5-13
5.6.3 Example Sequence
This section describes the procedure of entering the following example sequence.
• Flow of the example sequence
In this example, we will create a program based on Fig. 5-10.
The program repeats steps 1 to 8 three times. After repeating the sequence three
times, the load is turned off and the sequence ends.

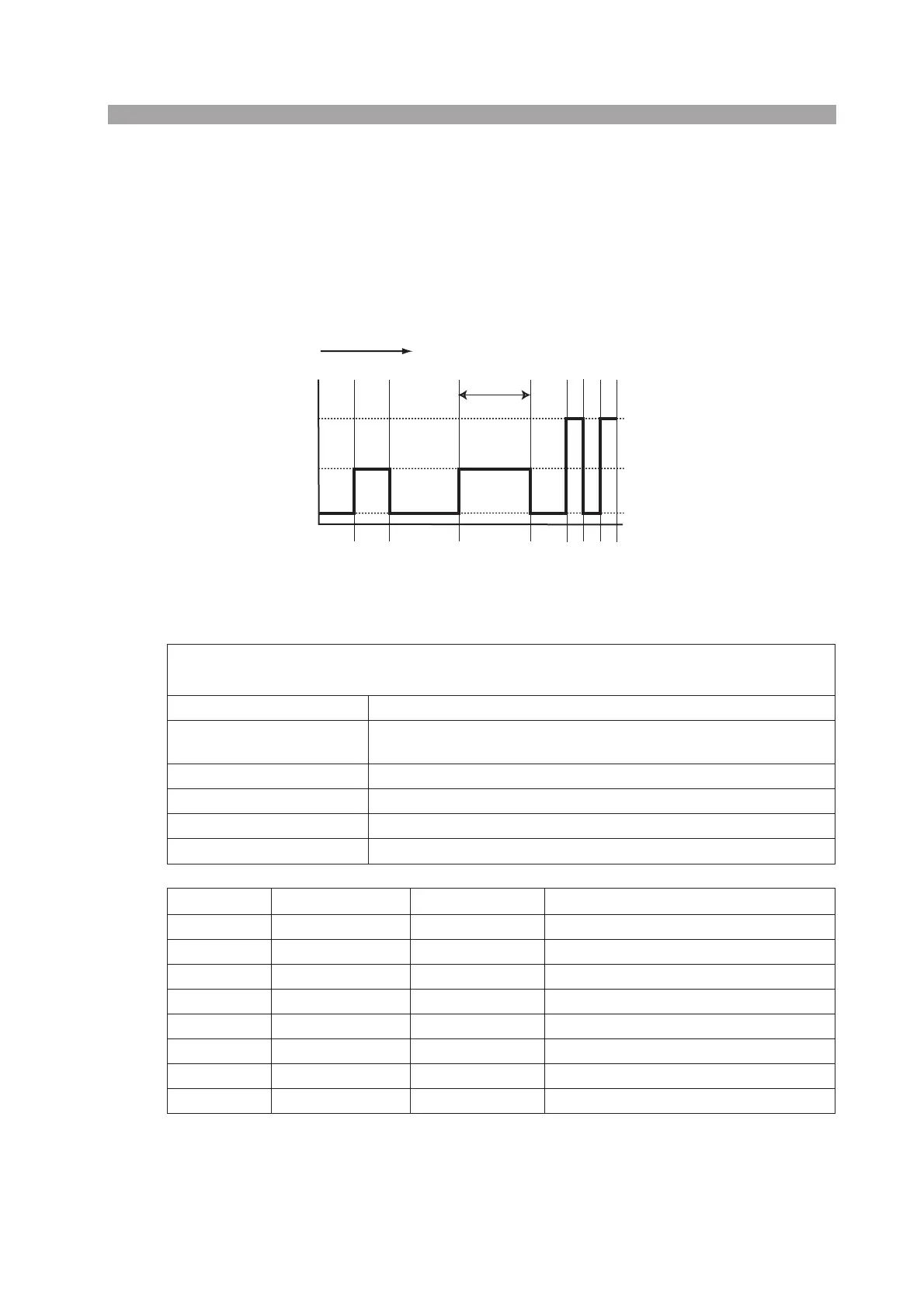

Fig. 5-10 Sequence execution example
Table 5-1 Sequence Program Creation Table
Program name: Example
Date: By:
Channel numbers (1 to 5) 1 (PLZ150U)
Memo
Repeat steps 1 to 8 three times. After repeating the sequence three times,
turn off the load and end the sequence.
Operation mode CC
Range (A) H:30 (A)
RPT (1 to 9999) 3
Last load (OFF/ON) OFF
Step Number
Value
Execution Time Note
1 1 A 100 s
2 5 A 100 s
3 1 A 200 s
4 5 A 200 s
5 1 A 100 s
6 10 A 50 s
7 1 A 50 s
8 10 A 50 s
10A
5A
Execution (RUN)
Setting
STEP
12 3 4 567
8
(Step execution time)
1A
To Next Page
