CAUTION! BE SURE THAT LOCK ON WINCH
IS ACTIVATED WHEN RAISING UNIT. FAILURE TO
ENGAGE COULD CAUSE WINCH HANDLE TO
SPIN OUT OF CONTROL CAUSING SEVERE
BODILY INJURY
IMPORTANT! DO NOT RAISE OR LOWER
AUGER. HOPPER BRACKET HARDWARE MUST
BE TIGHTENED BEFORE OPERATION CAN TAKE
PLACE.

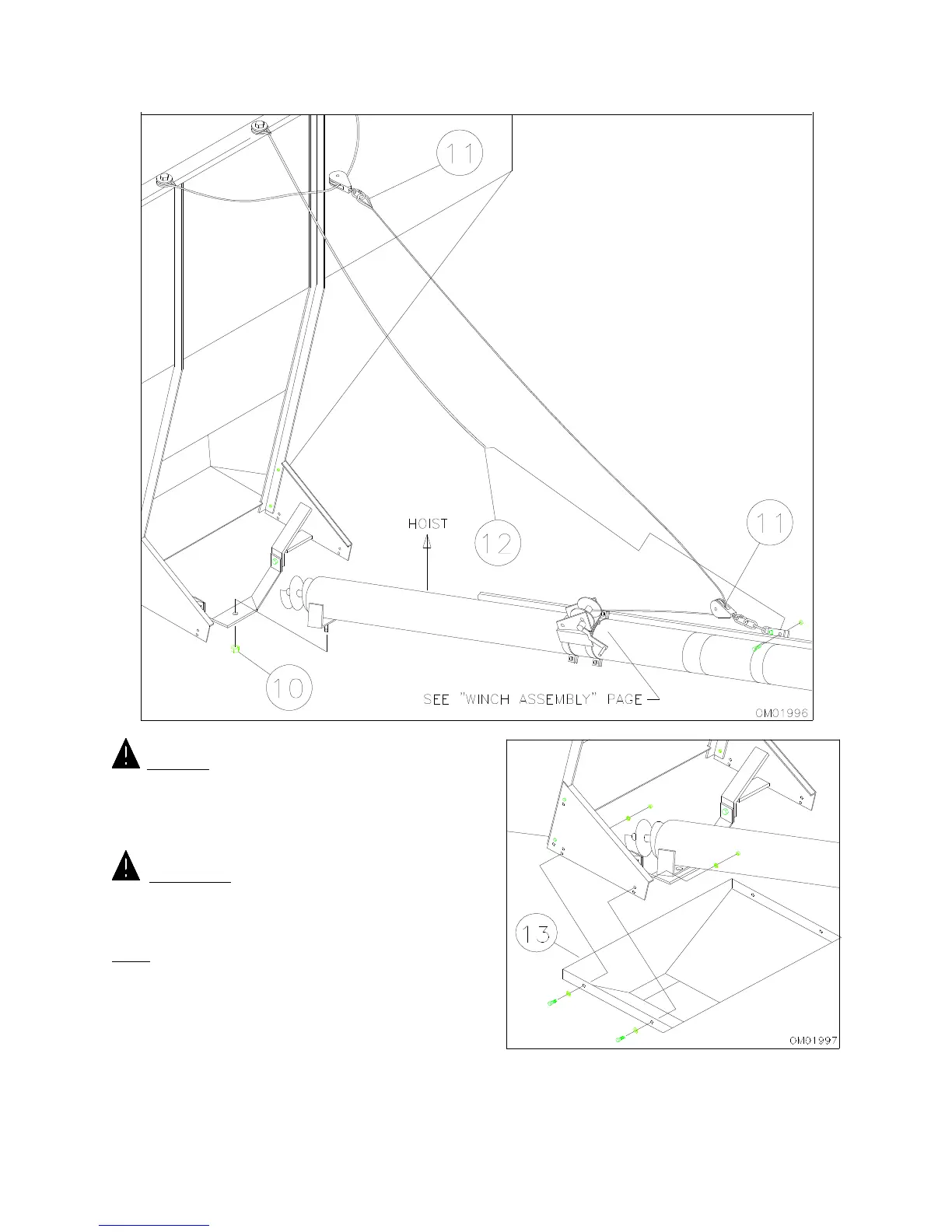

NOTE: Refer to Figure 3-1 for proper holes when
mounting hopper.
13. Place hopper into position on the outside of the
brackets. Secure using four 5/16 x 3/4”
capscrews, lock washers, flat washers, and hex
nuts. Adjust hopper so minimal space is found
between the hopper and the floor of the gravity
box (Figure 3-6).
14. Once all components are positioned properly,
tighten all hardware.
FIG. 3-5
FIG. 3-6
