N6/N5 for NDI·User Manuel
Copyright © 2023 Kiloview Electronic Technology Co., Ltd. 8
4 Installation and connection

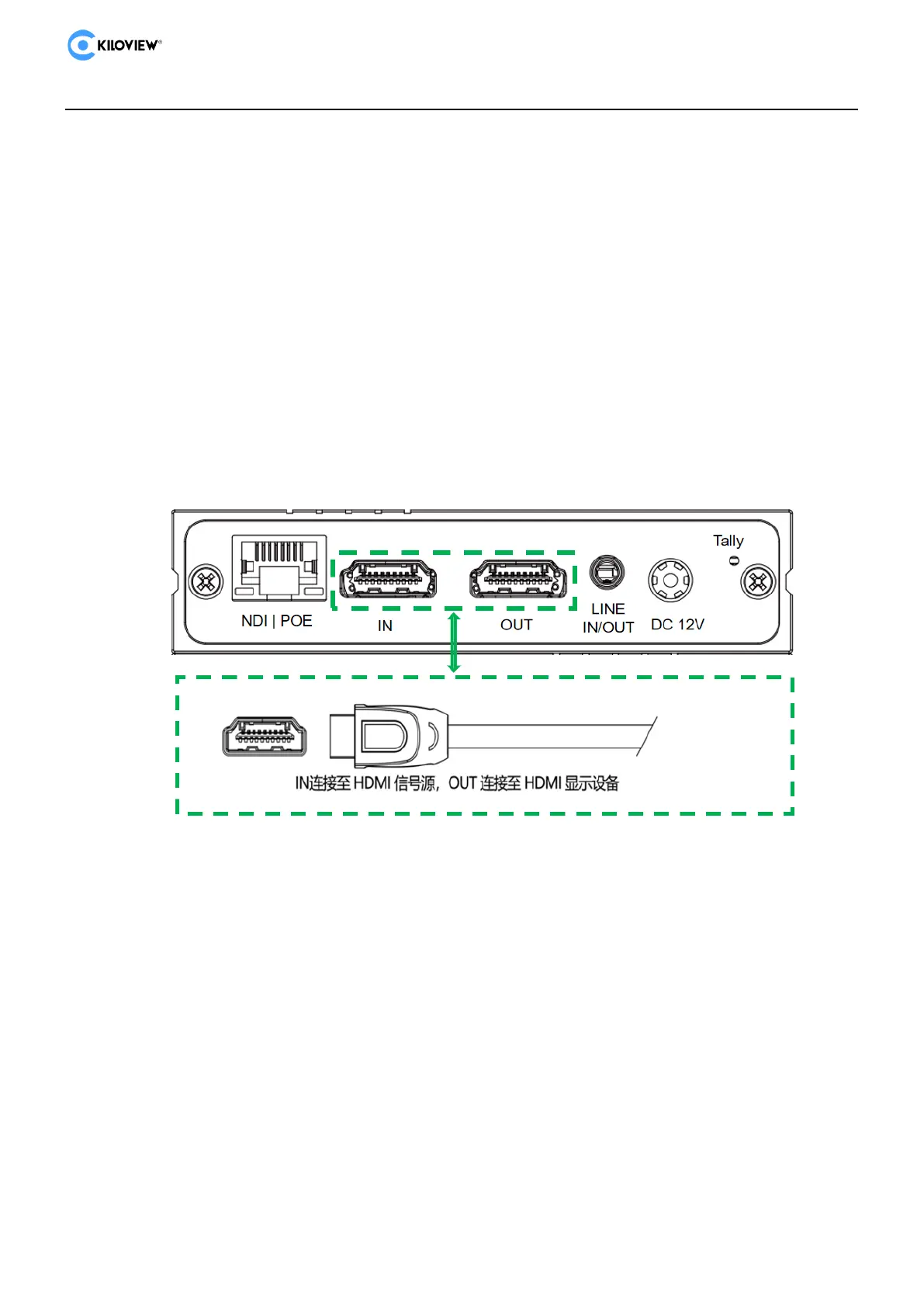

4.1 Connect Video Signal
Since the N5 and N6 are functionally different only in terms of input interface
(HDMI/SDI), N6 is used here for demonstration. The HDMI signal is connected from the
source (e.g. camera) to the HDMI input port of the device via a connection cable. the
HDMI output is connected to the display device via an HDMI cable.
4.2 Connect Network
Connect the network cable to the RJ45 network connector of the device and the other end
of the cable to the switch, which can also be connected directly to the computer's network.
