Chapter 3 Wiring Guide of VFD
46
3.1.2 Wiring of VFD for Basic Operation

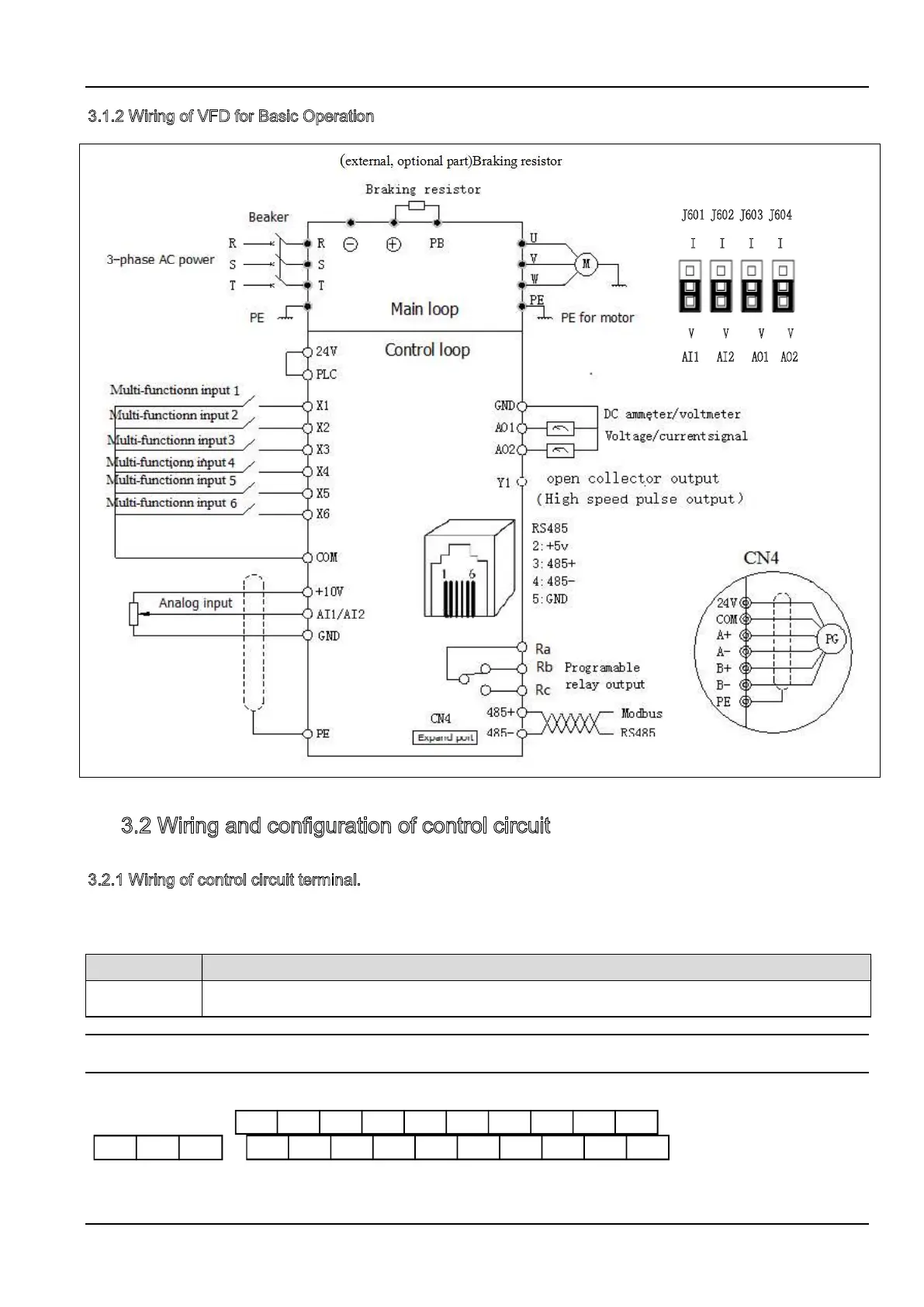

Fig.3-1 Basic wiring chart
3.2 Wiring and configuration of control circuit
3.2.1 Wiring of control circuit terminal.
Wire the terminals correctly before using the Drive. Refer to the table 3-2 for control circuit terminal function
Table 3-2 Control circuit terminal function
1
Analog input and output terminal, RS232 and RSRS485 communication port
Note:
It is recommended to use cables bigger than 1mm
2
to connect to the terminals.
Arrangement of control circuit terminals is as follows.
Ra Rb Rc
X1 X2 X3 X4 X5 COM 10V GND AI1 AI2
Y1 COM X6 24V PLC AO1 AO2 GND
485+
485-
Fig.3-2 Arrangement of control terminals
J601 J602 J603 J604
I I I I
V V V V
AI1 AI2 AO1 AO2
