By-pass kit: Considerations
The by-pass valve set can be assemble in various configurations to
accommodate change of copper pipe direction.
The inlet “T” is clearly labelled with a direction of flow arrow, if the T’s are assembled
incorrectly water will not flow to the property.
NOTE:
Supplied compression olives are a mix of brass and copper, they are in the correct joints
and should not be relocated. Brass olives are for joints on copper pipe, copper olives are
for hard tails in the T assemblies.
When in the correct orientation make good the compression joints.
When measuring the length of copper pipe work to cut out, the following must be taken
into account; the length of pipe inserted into the T’s is dierent allowing for the internal
non-return valve located in the inlet T.
On completion, ax the “By-pass Softener” label in a prominent location.

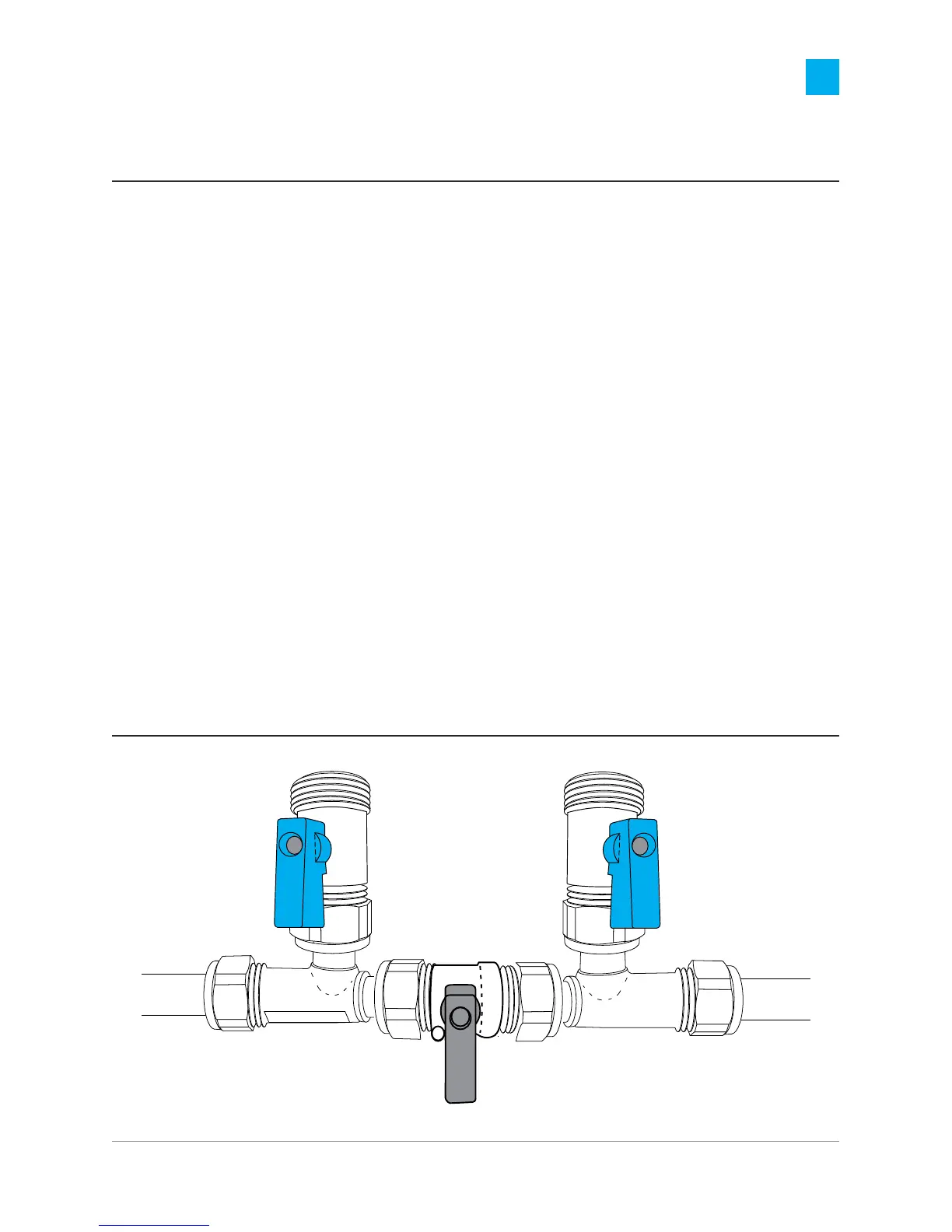

By-pass kit: Installation
Outlet
Inlet
Inlet Only
To Next Page
