COMPONENT LOCATIONS

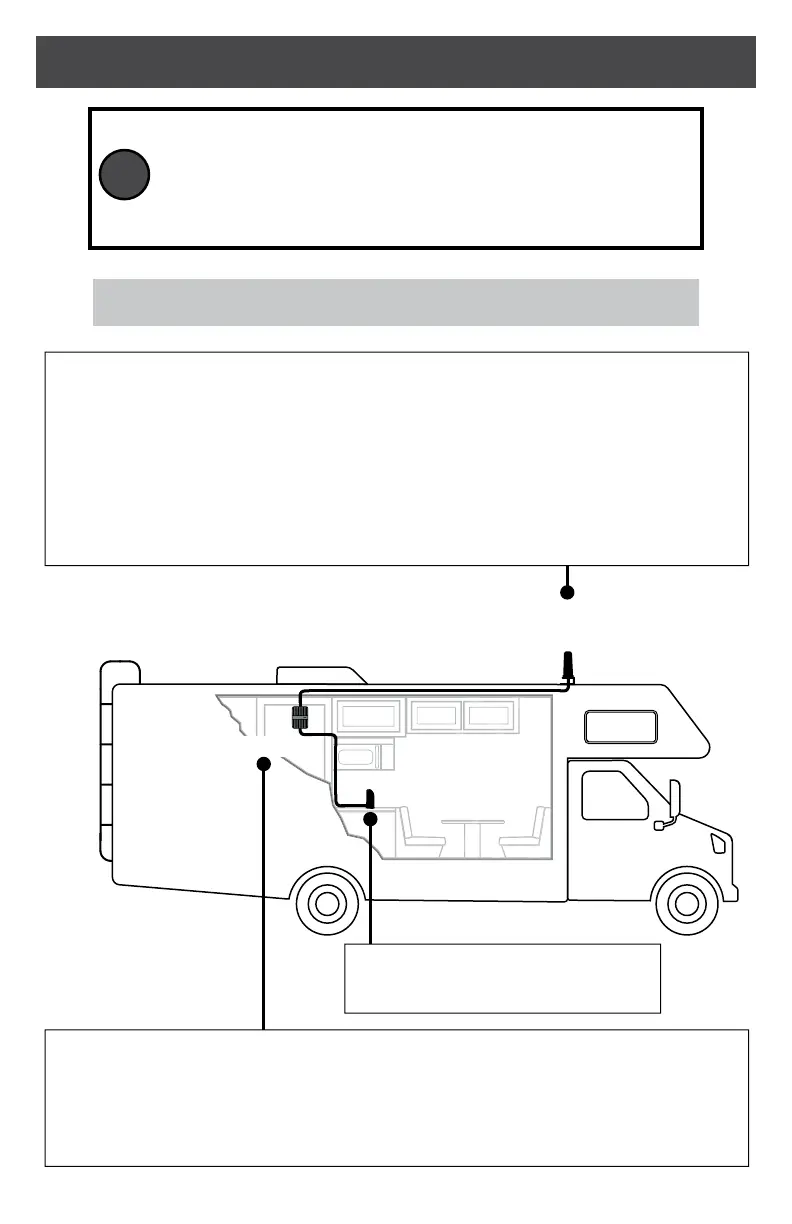

Outside Antenna
mounted to roof
KC1292
Metal
Obstruction
Booster
Inside Antenna
The outside antenna must be completely above the roof line.
Make sure the outside antenna does not exceed maximum vehicle height
restrictions.
Locate outside antenna as far from metal obstructions as possible.
The mounting bracket allows the outside antenna to be mounted directly to
the roof, or to a pole or ladder using the included pole mounting hardware.
Mount booster as far away from outside antenna as possible, but make sure
the 25 foot cable will still reach between the two.
A convenient place to mount the booster is to the inside back of a cabinet
near a 110 VAC power source. The booster can be oriented in any direction.
Place inside antenna as far away
from outside antenna as possible.
It is up to the installer to determine the best component locations.
Werecommendyoudoa“softinstall”rstbyplacingall
components in their chosen locations, completing the setup
instructions, and verifying the system works as desired.
(Route the cable through an open door or window for the
soft install.)
