Getting started...
Before you start

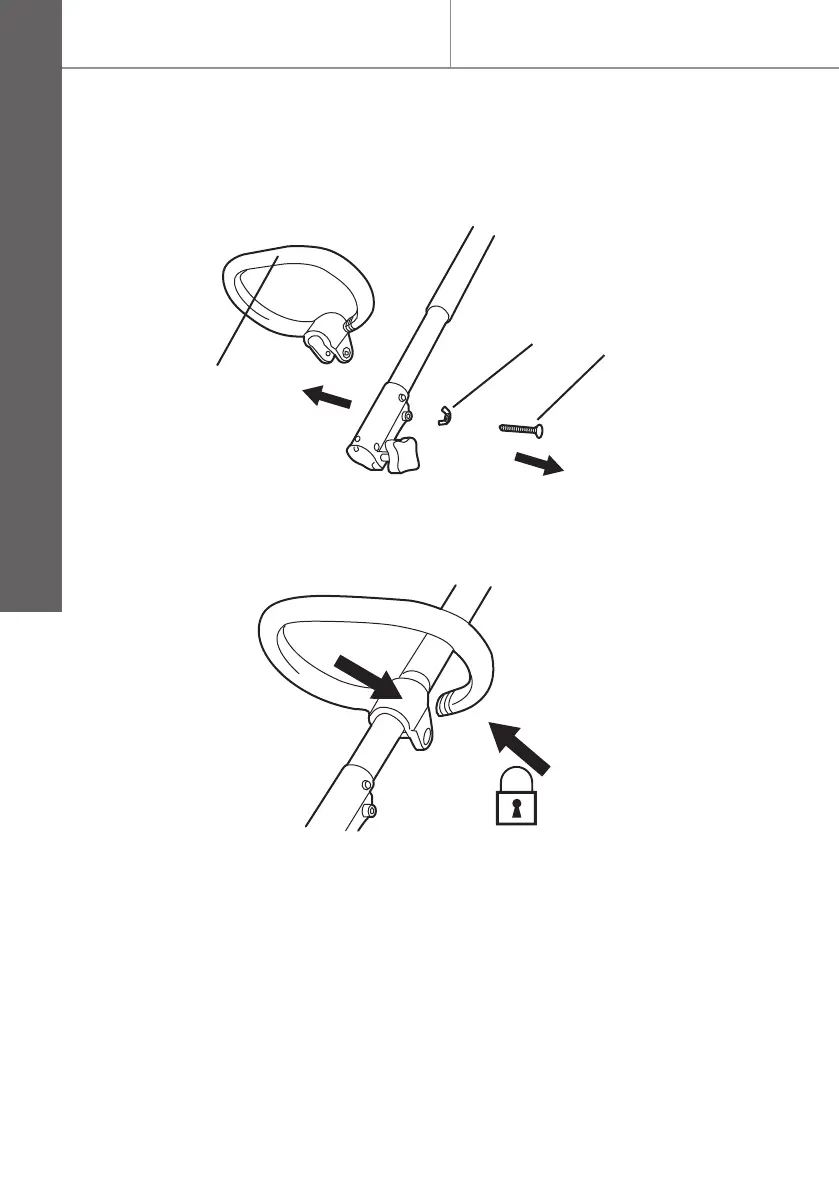

Auxiliary handle assembly
Loosen and remove the preassembled bolt and wing
nut from the auxiliary handle (Fig. 1a).
Place the auxiliary handle onto the upper shaft
and secure it with the bolt and wing nut (Fig. 1b)
Shaft assembly
> (15b)
(15a) (14)
> (14) (16)
(15b) (15a)
> Align the lower shaft (19) with the clamp (17) so that the
safety pin (Fig. 2a, A) is orientated to the middle hole in the
clamp.
> Press the safety pin down and insert the lower shaft (19)
into the clamp (17) (Fig. 2a).
14
15a
15b
Fig. 1a
Fig. 1b
