Getting Started . . .
Before you start
NOTE: Ensure the hook for recoil starter handle (21) is assembled on the
right-hand side of the upper handle bar.
3. Hold the upper handle bar (2) with the brake clutch (1) facing upwards. Align the
mounting holes of the upper handle bars (2) and the lower handle bars (5).
4. Place the hook for recoil starter handle (21) with it’s pin positioned on the upper
side of the upper handle bar (2) and secure it with the mounting knob (3) and the
mounting bolt (4). Secure the bars on the other side with the remaining mounting
knob (3) and the mounting bolt (4) (Fig. 2).
3
21
4
2
5
2
5. Attach the brake wire (23) to the lower handle bar (5) with the wire clip (19) (Fig. 3).
19
5
23
3
Grass catcher assembly

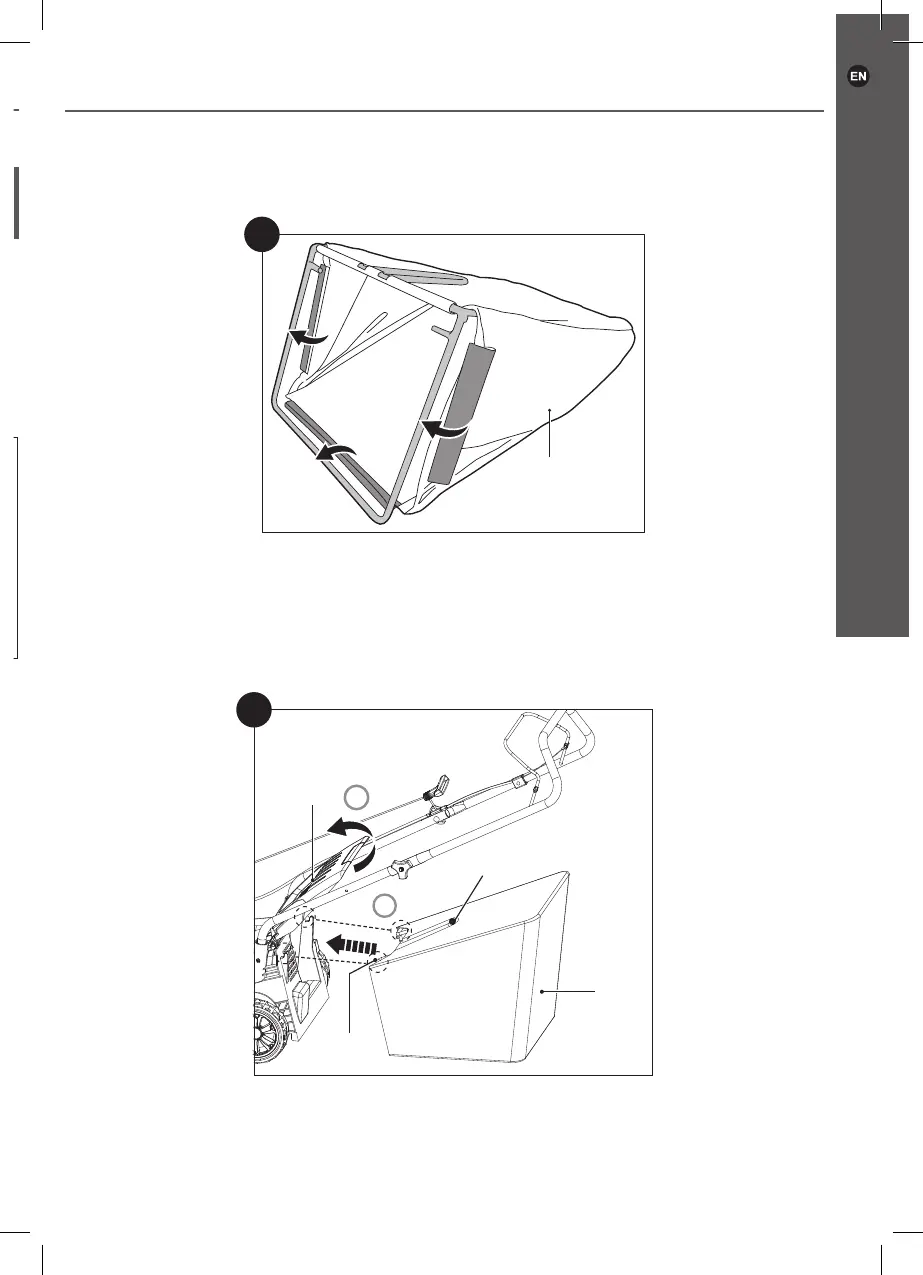

1. Attach the bag of the grass catcher (18) to the frame (Fig. 4).
18
4
Grass catcher installation
Always carry the grass catcher (18) by its handle (18a).
1. Lift the rear deector guard (20) and hold it in place (Fig. 5, step 1).
2. Align the hooks (18b) with the rods and hang them onto (Fig. 5, step 2).
3. Carefully release the rear deector guard (20) afterwards.
20
18
18a
5
1
2
18b
