NMRS1500
Getting Started . . .
6
3
5b
5a

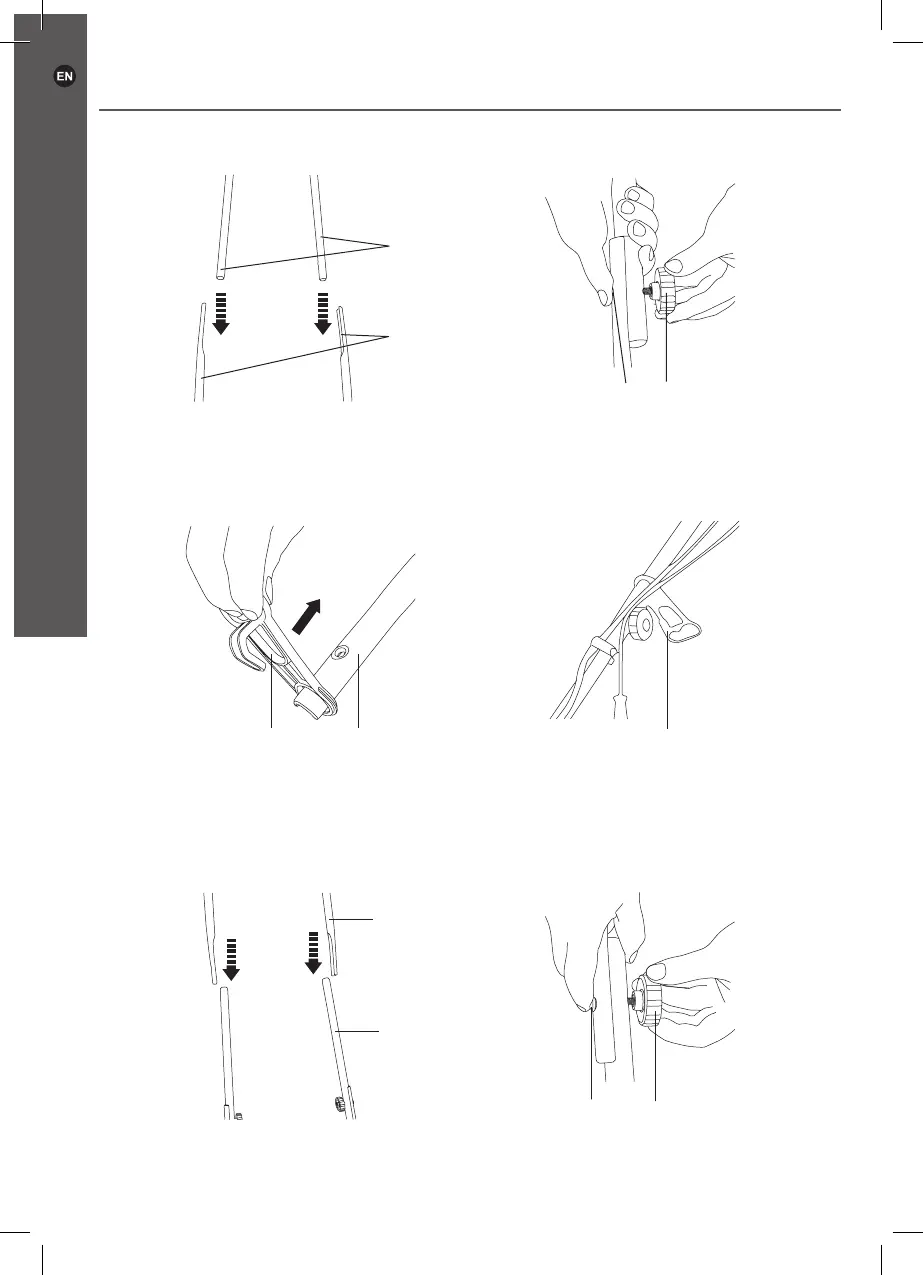

Fig. 4 Fig. 5
4. Slide the cord strain relief (17) onto the upper handle bar (2) (the side of handle
with two holes) before assembly (Fig. 6&7).
17
2
17
Fig. 6 Fig. 7
5. Align the upper handle bar (2) with the middle handle bar (3), make sure the two
holes are on the right side (Fig. 8). Secure them with handle assembly set (5) with
locking knob located inside on each side (Fig. 9).
2
3
5b
5a
Fig. 8 Fig. 9
