21
NMRS1500
In more detail . . .
Product functions
Cutting device
The product has two functions, raking and scarifying. The scarifying cylinder is pre-
assembled on the product.

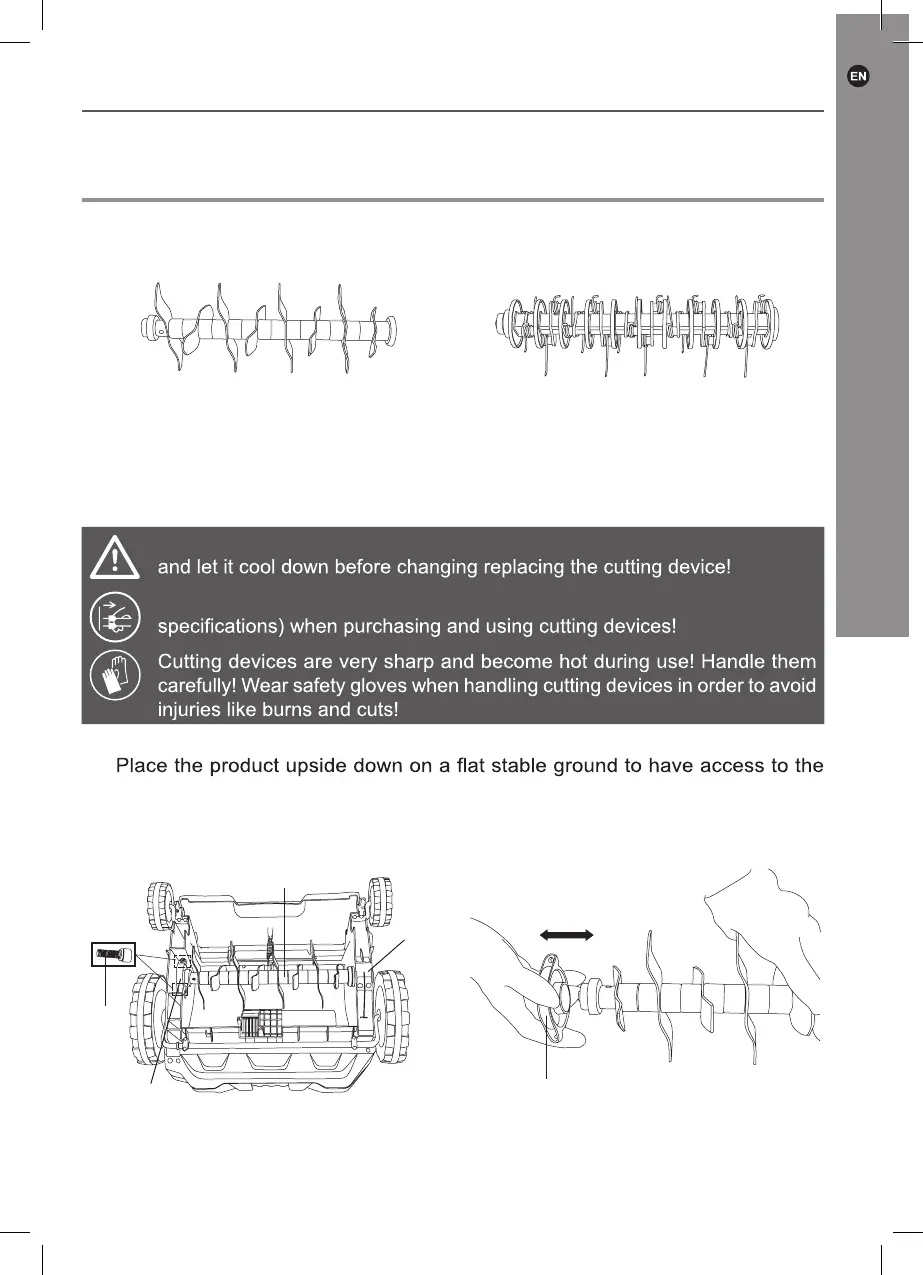

Fig. 22 (Scarifying cylinder with
blades)
Fig. 23 (Raking cylinder with
springs)
Replacing
WARNING! Always switch the product off, disconnect it from power supply
Observe the technical requirements of this product (see section Technical
1. Remove the grass catcher (15).
2.
underbody.
3. Loosen two bolts (24a) with the provided hex key, remove them together with the
spring washers (24b) from the bearing seat (23) (Fig. 24).
24
22
Fig. 24 Fig. 25
