2.2 PLUMBING CONNECTIONS
KINGSPAN TRIBUNE tanks can be supplied in a single or dual coil conguration. The coils are single wall coils, this allows a variety
of heat sources to be used. In the single coil conguration this can be connected to a boiler or solar circuit. Twin coil tanks the lower
coil is connected to a solar circuit and the top coil to a boiler system. Figure 1 shows a schematic of the tank conguration.
Page 4 of 12

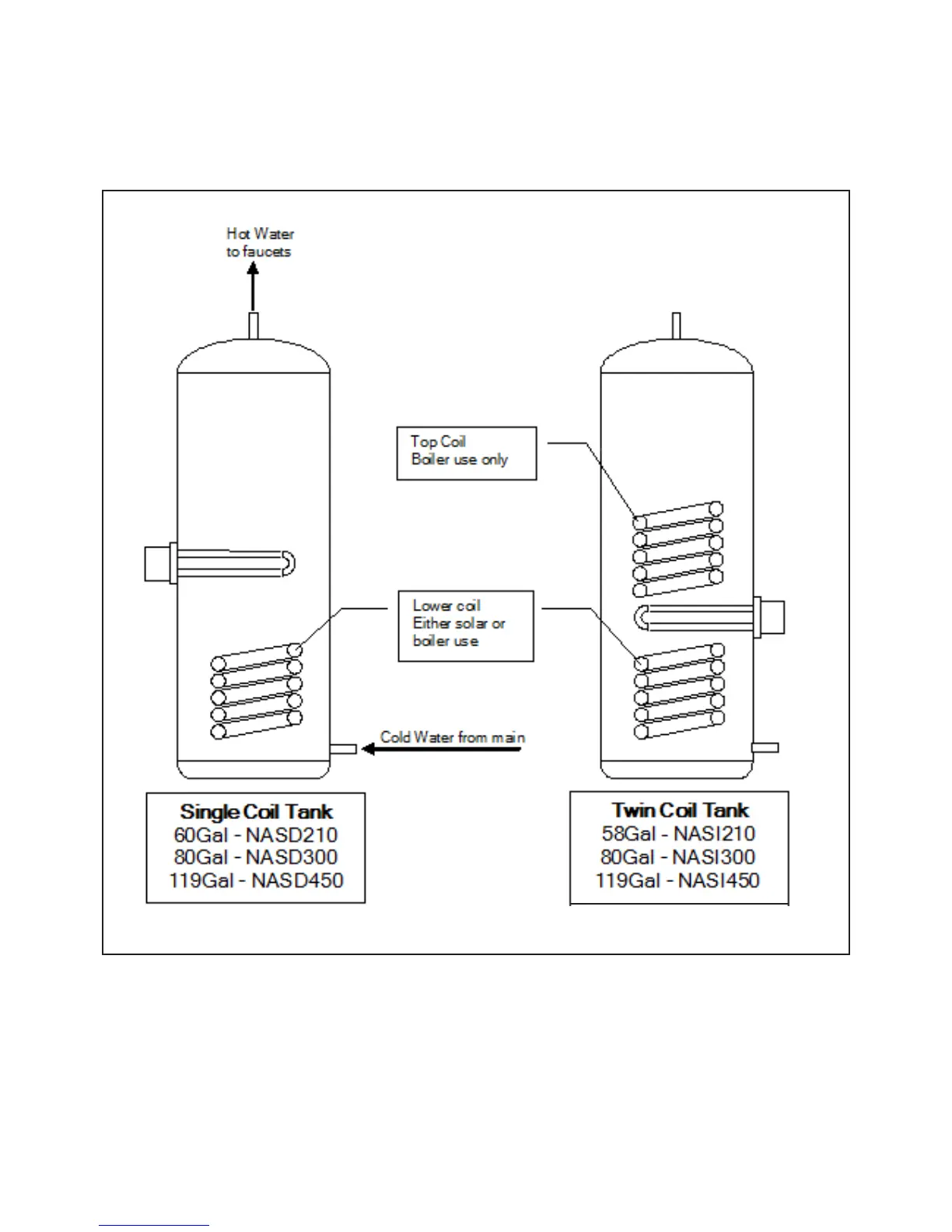

Figure.1 Single and Twin coil congurations
